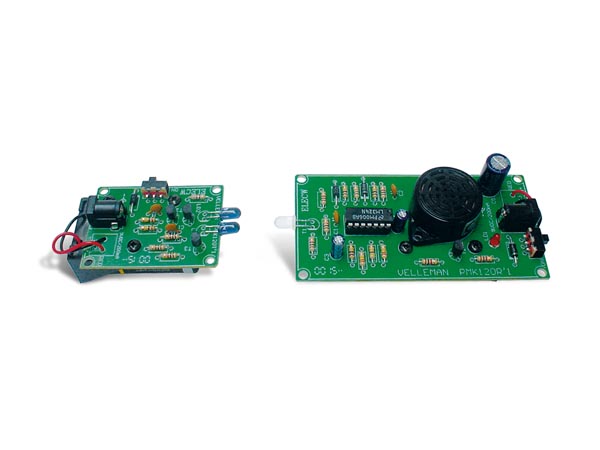

IR Light Barrier Intrusion Alarm Kit

Place the Infrared (IR) light barrier strategically so it can warn you when someone is near! Applications : announce visitors, warn against burglars, set boundaries, science projects

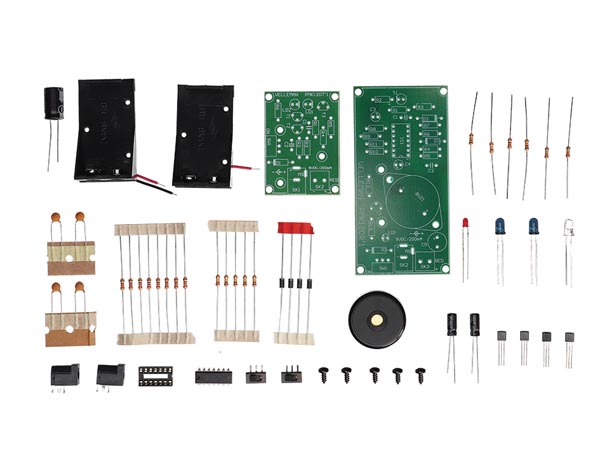

Note: this kit requires soldering - please see the pictures for an idea of number of components and complexity. This is an educational kit.

Technical data

• audible (85dB) and visible (LED) alert
• range: 1 to 4m
• on/off switch provided
• power supply:
  • transmitter: 9VDC / 50mA max.
  • receiver: 9VDC / 20mA max.
• 9V battery holder and adapter jack included
• dimensions: receiver: 100 x 50mm
• not recommended for outdoor use

Operational properties

• Instruction manual languages: Dutch, English, French, German, Spanish
• Coding skill level: none
• Electronics skill level: none
• Mechanics skill level: 1
• Soldering skill level: 1

Product basic info

• Colour: Green
• Height: 55 mm
• Weight: 80 g
• Width: 40 mm

Required Tools

• Soldering iron
• Solder
• Side cutters
