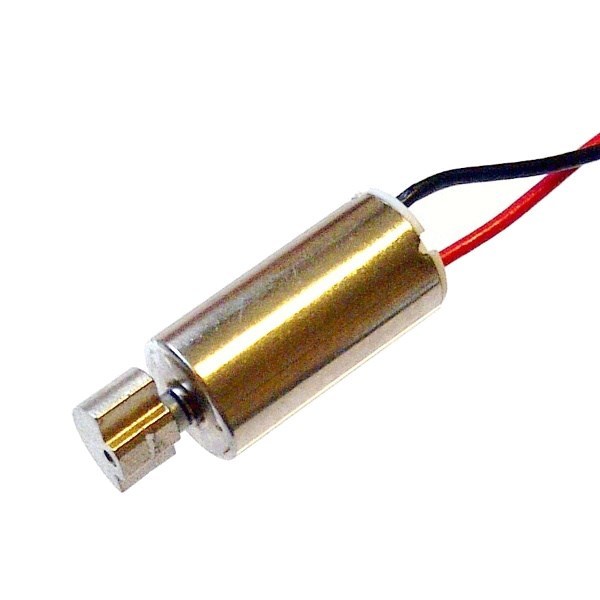

Miniature 3V Vibrating Motor

$5.10

Quantity

In stock

Miniature vibration motor measuring only 12mm long x 6mm diameter. Coreless motor design, rated at 3V nominal.

These motors are often used for silent alert functions in mobile phones and are also used in applications within tools, robotics, control sticks and various alert functions in hand held equipment.

Pre-wired with red & black leads 90mm.

Dimensions:	L: 12mm. Diameter: 6mm
Rated voltage:	3.0VDC
Operating range:	1.7-3.6VDC
Rated speed:	14000 RPM (±2000 RPM)
Vibration amplitude:	1.5
Starting voltage:	1.7V max
Rated current:	75mA
Stall current:	140mA max
Weight:	1.85g

Download datasheet
