Guitar Effects Latching Button 3PDT Foot Switch

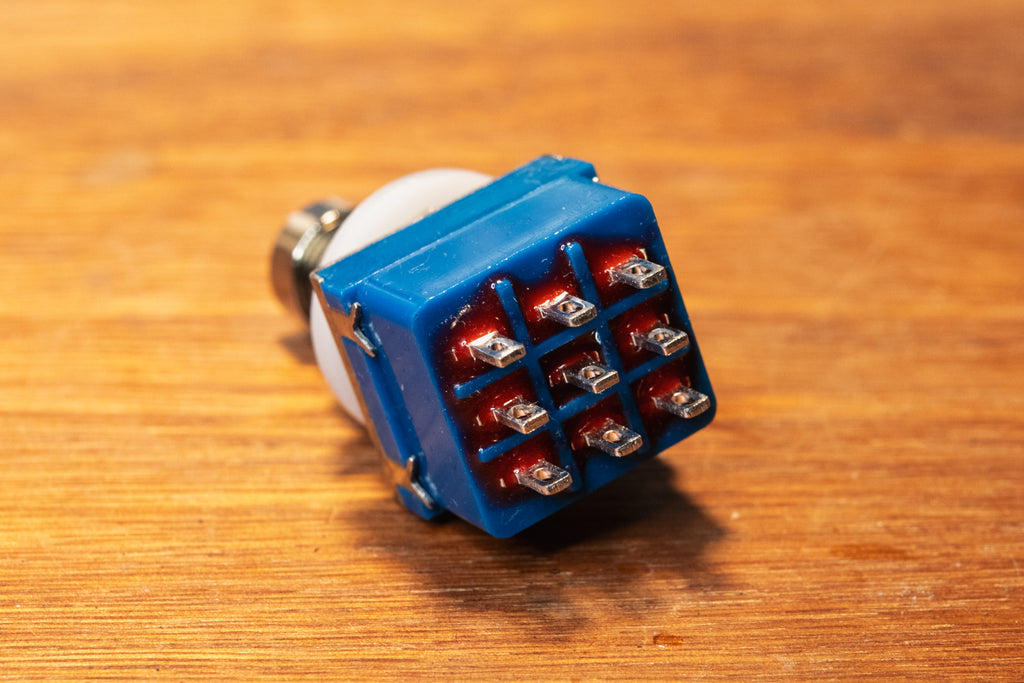

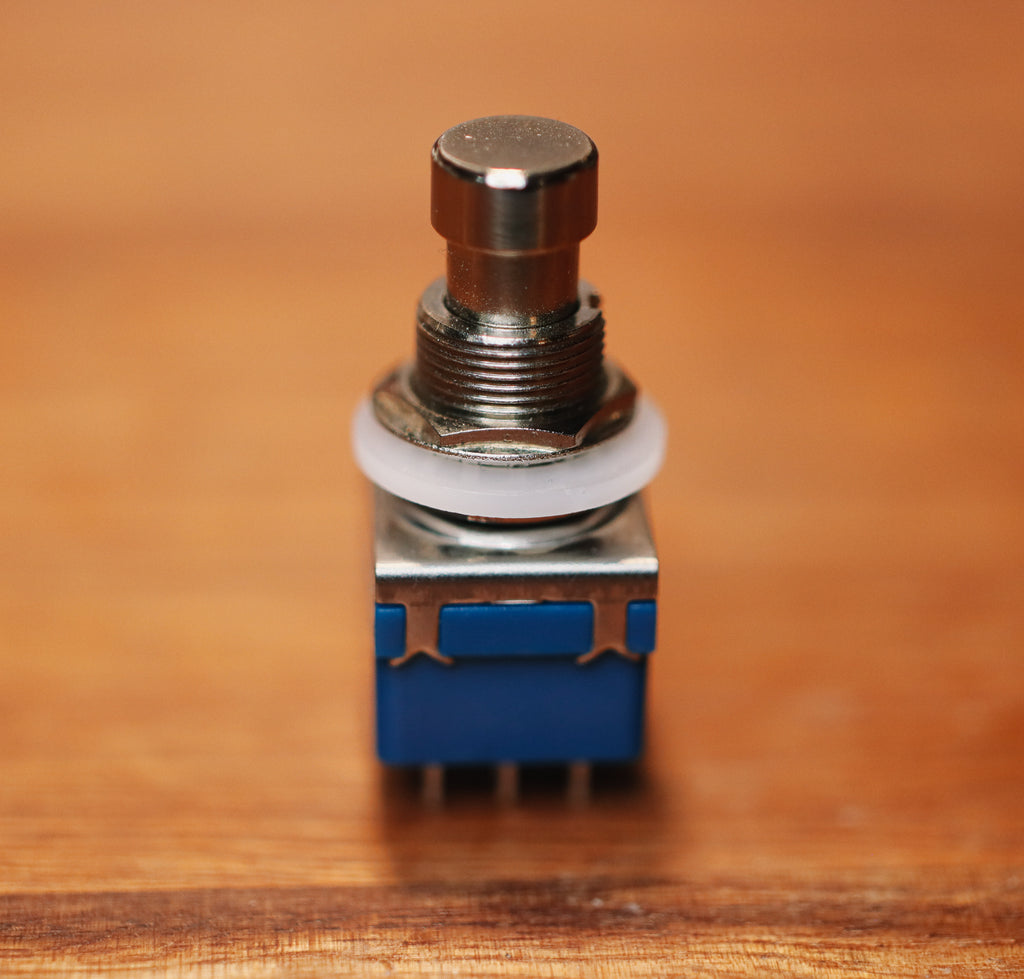

This is a latching 3-pole, double-throw switch that works well for guitar pedal effect pedals. This 9-pin switch can also be used to enable True Bypass i.e., to completely bypass the effect circuitry when your effect is turned off.

A three pole, double throw (3pdt) switch comprises three single double throw (spdt) switches controlled by one foot switch. The comparison between SPST, SPDT, and 3PDT are shown in the below switch diagrams belo:

Single Pole Single Throw (SPST)	Single Pole Double Throw (SPDT)	Three Pole Double Throw (3PDT)

If you need single pole single throw (SPST) momentary foot switches, useful for digital effects, they are available here.

Technical Specifications

• Total height: 42.15mm
• Height inside enclosure: 2.35mm
• Hole diameter: 12mm
• Pins: 9

Video

Paul from DIY Guitar Pedals explains 3pdt foot switch works in the video.
