Pimoroni Blinkt! LEDs

Eight super-bright RGB LED indicators that are ideal for adding visual notifications to your Raspberry Pi without breaking the bank!

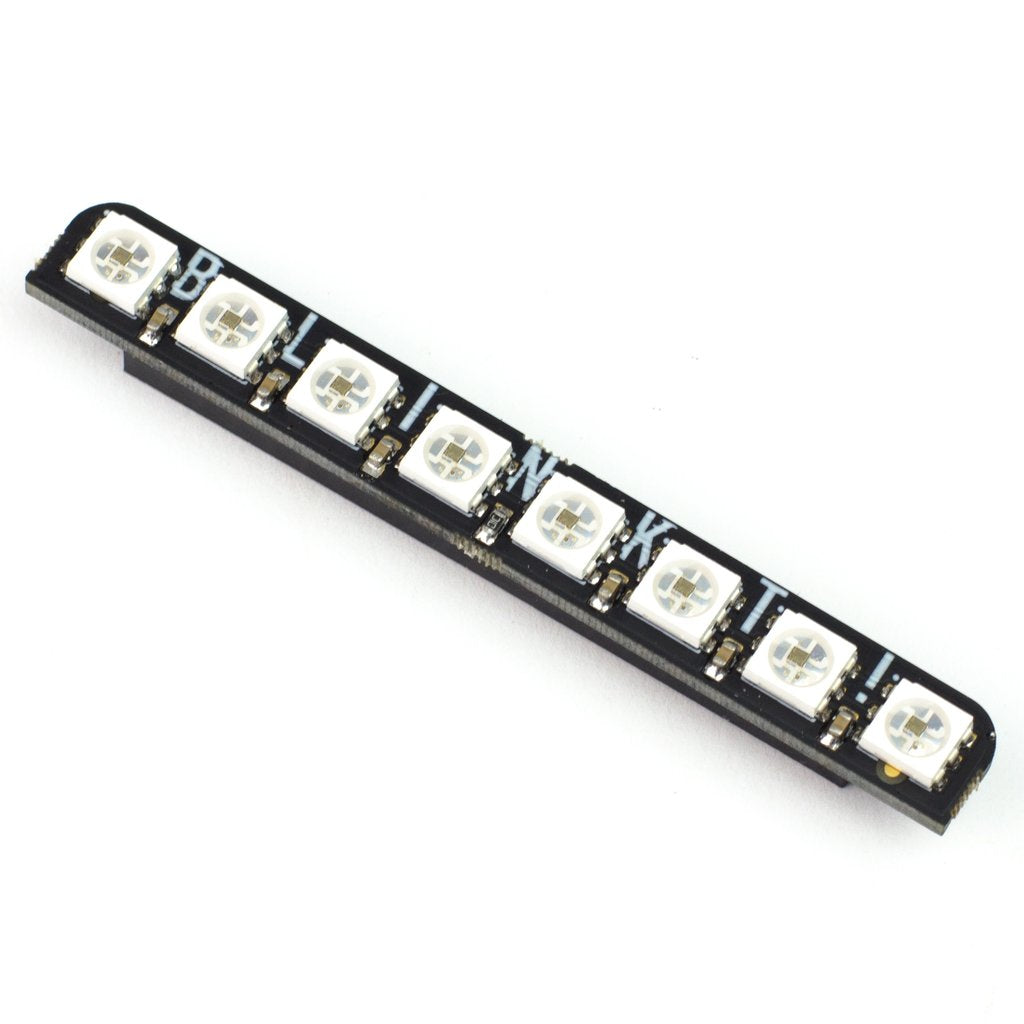

Inspired by Alex Ellis' work with his Raspberry Pi Zero Docker Cluster, we developed these boards for him to use as status indicators. Blinkt! offers eight APA102 pixels in the smallest (and cheapest) form factor to plug straight onto your Raspberry Pi.

Each pixel on Blinkt! is individually controllable and dimmable allowing you to create gradients, pulsing effects, or just flash them on and off like crazy. The data and clock lines are connected to GPIO #23 and #24 respectively but for simplicity you can just use our Python library to drive them.

Features

• Eight APA102 RGB LEDs
• Individually controllable pixels
• Sits directly on top of your Pi in a tiny footprint
• Fits inside most Pi cases
• Doesn't interfere with PWM audio
• Blinkt! pinout
• Compatible with Raspberry Pi 3, 2, B+, A+, Zero, and Zero W
• Python library
• Comes fully assembled

Software

Our Blinkt! Python library will have you blasting out rainbows in two shakes of a unicorn's tail! There's a stack of examples too, from binary clocks to cheerlights and flickering candles to Larson scanners!

Notes

• Be careful to plug in your Blinkt! the correct way round, it has curves on the top that match the corners of your Raspberry Pi
• The dimensions of Blinkt! are 65mm long x 8mm wide x 8.5mm thick (thickness includes header and pixels)

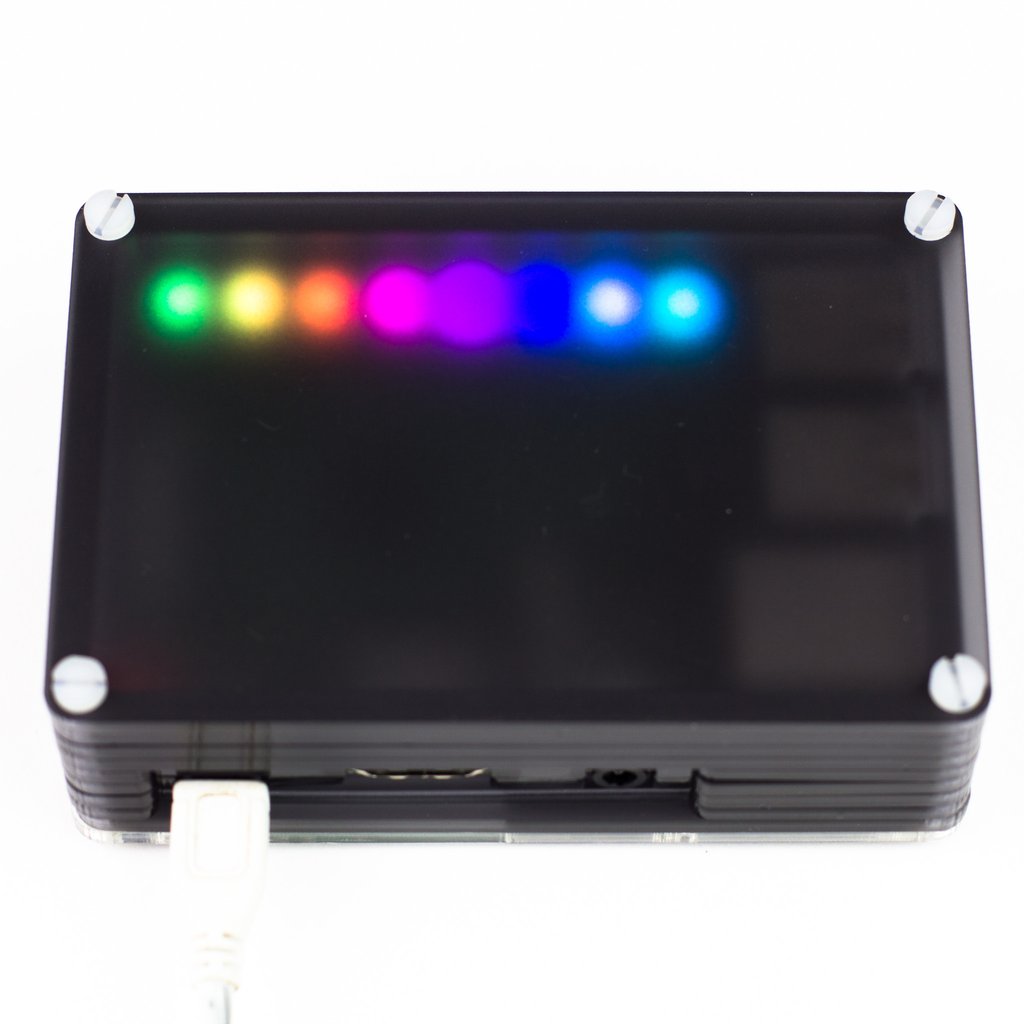

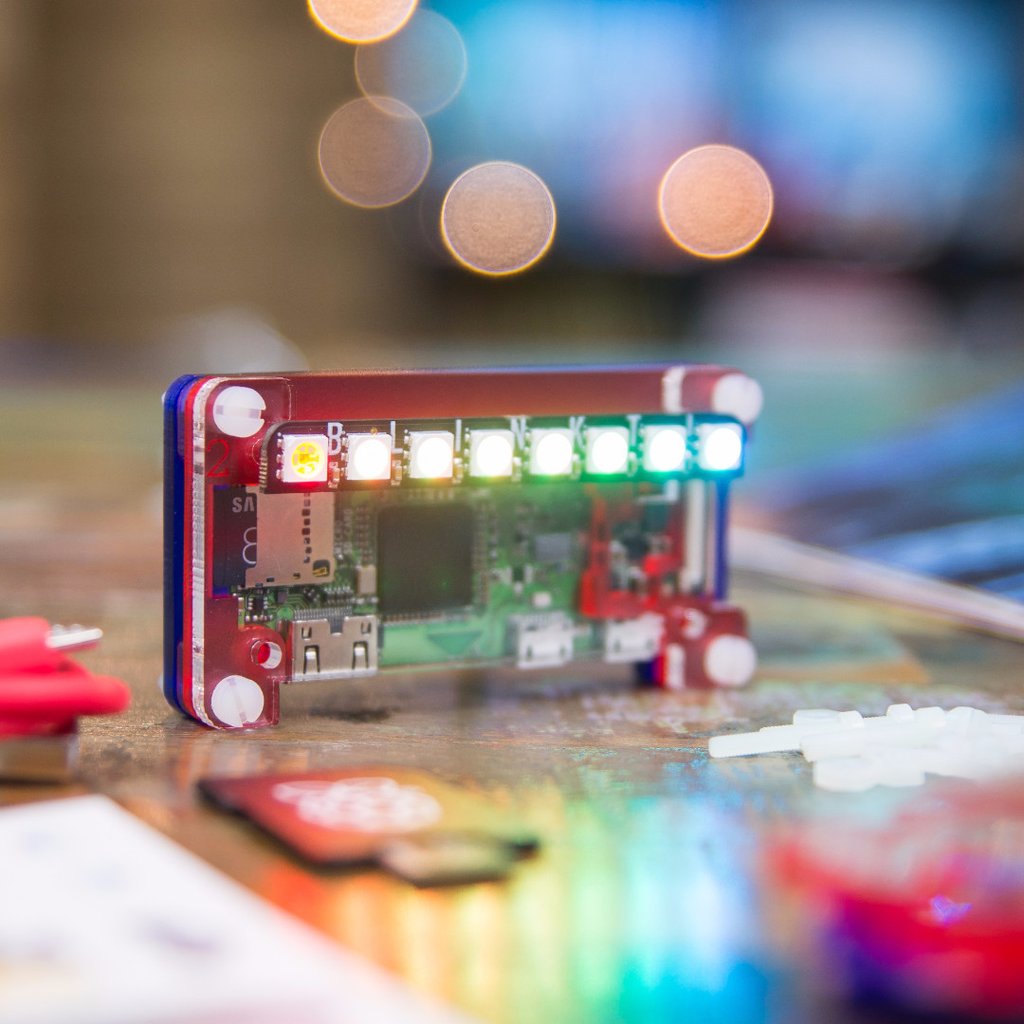

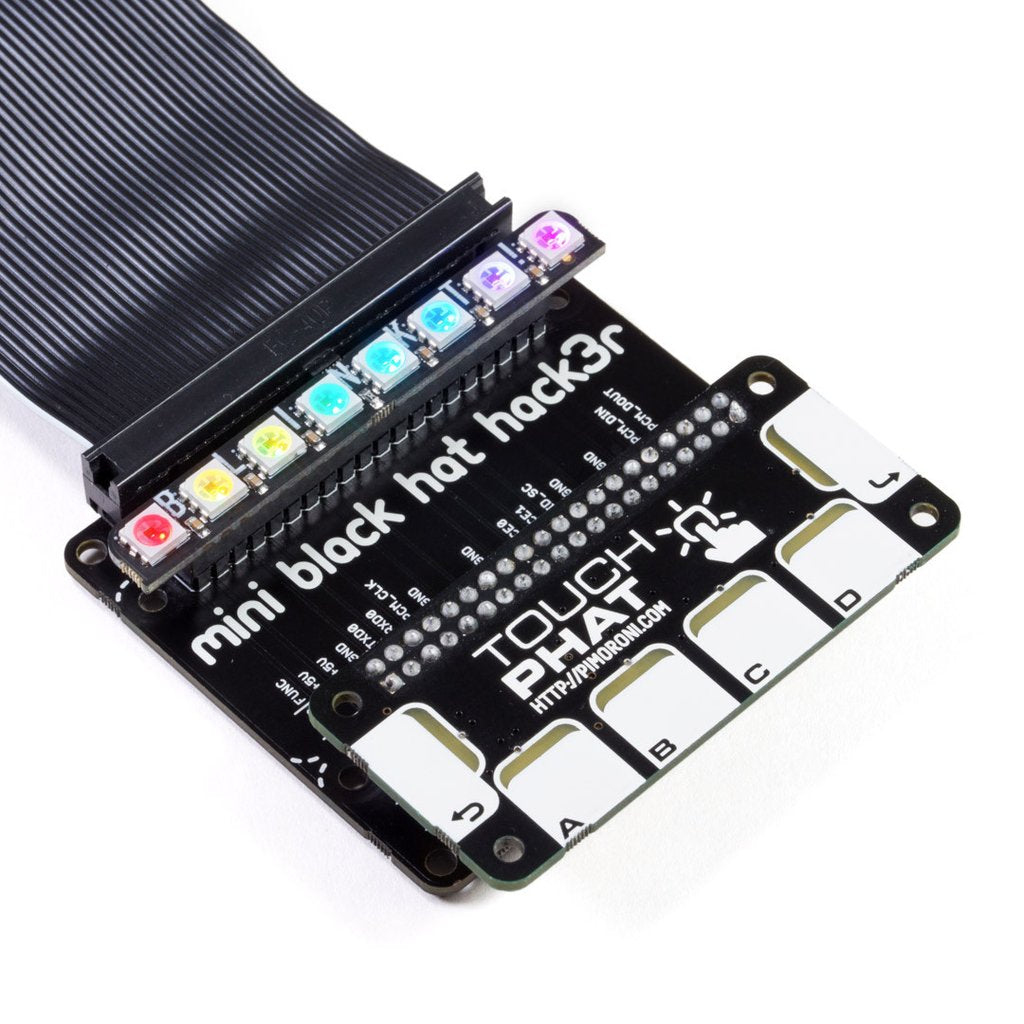

• Additional accessories shown in photos not included

We featured Blinkt! on a special episode of Bilge Tank where we tried to come up with as many different code examples as possible in one morning. Check it out below.
