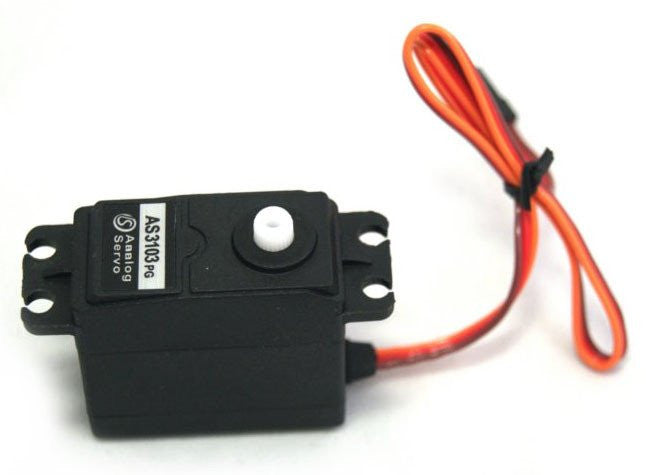

Continuous Rotation Servo

Normal hobby servos only rotate about 180 degrees. That's perfect for most applications, but sometimes it can be useful to have a servo that will turn a full 360 degrees, and can keep turning indefinitely in either direction.

Note: This item has been discontinued - however, you can find more servos here.

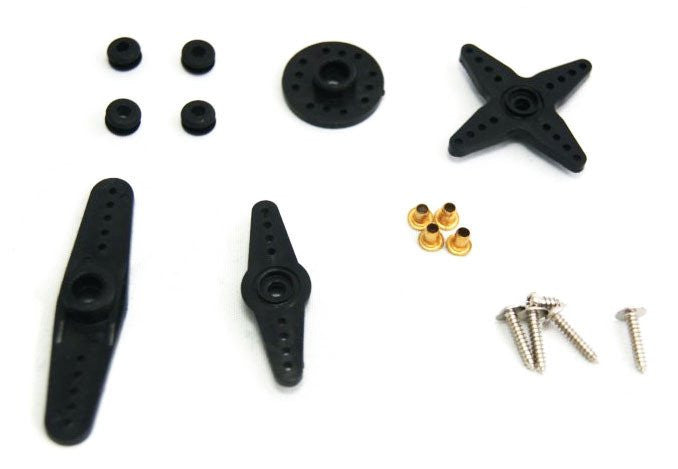

Comes with a variety of horns, mounting screws, and rubber mounting bushes.

Note: If you need a standard servo, please see: Standard Servo.

Specifications

• Dimensions: 40 x 20 x 37.5mm (servo body, not including mounting tabs)
• Weight: 38g
• Operating Voltage: 4.8-6V (ensure that you have sufficient onboard or external power if you wish to use these with a micro controller such as an Arduino board or Micro:bit)
• Speed at 4.8V: 0.19sec/60 degrees
• Torque at 4.8V: 5kg/cm
• Speed at 6.0V: 0.22sec/60 degrees
• Torque at 6.0V: 5.5kg/cm
• Gear Type: plastic
• Cable Length: 320mm
• Lead Colours: red = +4.8-6V, brown = 0V, orange = signal
