Kitronik FM Radio Kit V2.0
1/2

Kitronik FM Radio Kit V2.0

$28.80 AUD
Taxes included. Shipping calculated at checkout.
In stock

Note: There's limited V2 stock remaining of this kit. For new classroom projects, consider the Kitronik FM Radio Project Kit V3.0, featuring updated radio receiver and audio amplifier ICs, onboard reverse polarity protection to help guard against incorrect battery connections, and refreshed photographic assembly instructions. V3 continues Kitronik’s support for teachers with printable student worksheets and suggested teaching sequences, while retaining the same 88mm x 46mm PCB dimensions and familiar tuning and volume controls.

The FM radio kit uses industrial surface mount ICs (the Si4820 and the NCP2890). The FM radio kit is supplied with the ICs mounted on the board. You just have to solder the remaining resistors, capacitors and other components to finish the kit.

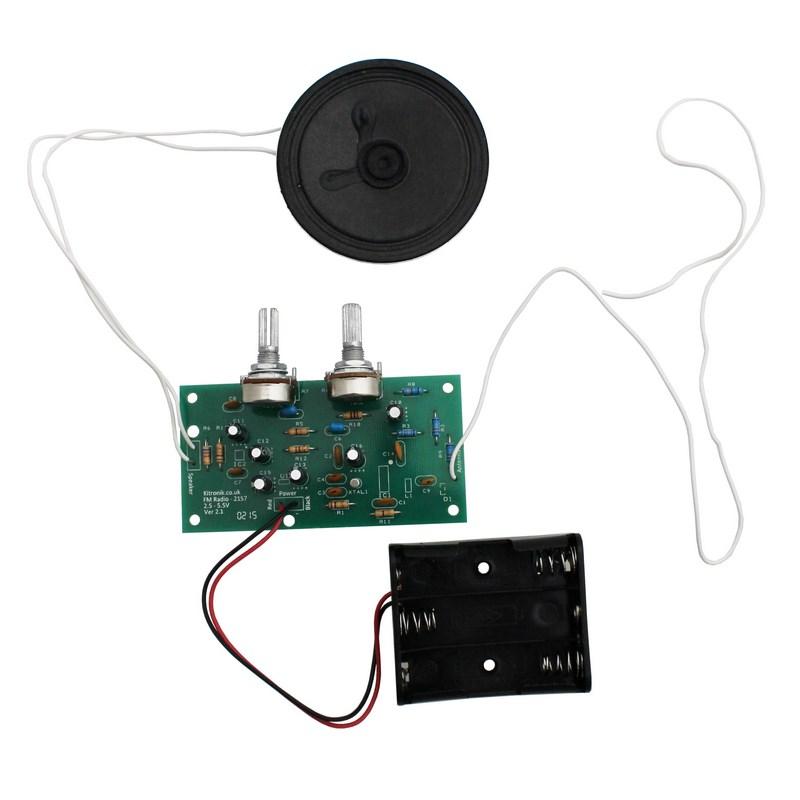

The radio has controls for tuning and to adjust the volume. The circuit includes an audio amplifier and output is via a 66mm diameter speaker that is supplied with the kit.

The board can be powered from a 2.5V to 5.5V supply and works nicely off a 5V wall supply or 3x AA batteries (not supplied).

The Si4820 IC is one of the latest generation of radio receiver ICs that offer fantastic reception quality and ease of tuning, and the NCP2890 IC can output 1W of power.



Features:

  • FM Radio kit.
  • Audio amplifier built-in.

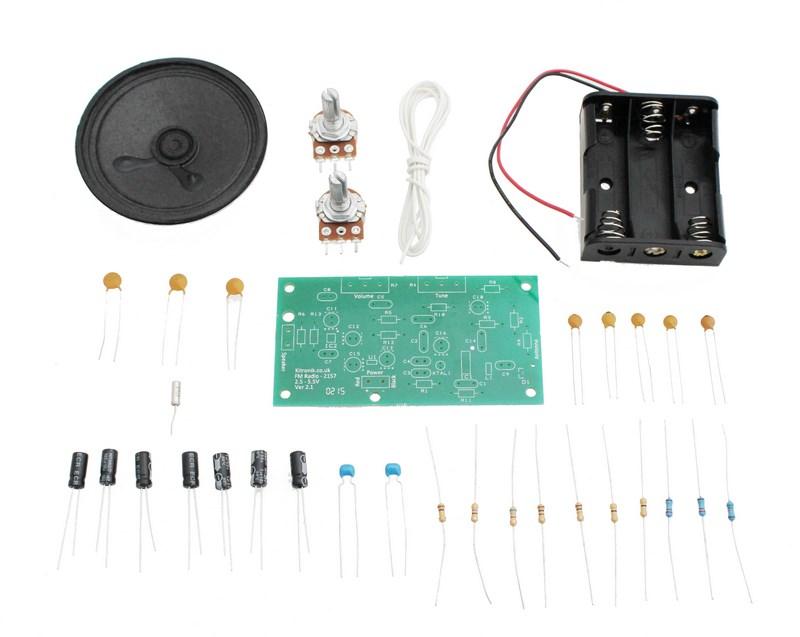

Contents:

  • 1 x Si4820 FM Radio IC (Pre-mounted).
  • 1 x CM1213A ESD Protection Diode (Pre-mounted).
  • 1 x TLV700 3.3V LDO 200mA Regulator (Pre-mounted).
  • 1 x NCP2890D Mono Amplifier IC (Pre-mounted).
  • 1 x Fixed Inductor 270nH 5% (Pre-mounted).
  • 1 x 100K 16mm Linear Potentiometer.
  • 1 x 10K 16mm Linear Potentiometer.
  • 5 x Electrolytic Capacitor, 50V, 1uF.
  • 3 x Ceramic Capacitor, 50V, 100nF.
  • 1 x Ceramic Capacitor, 33pF.
  • 2 x Ceramic Capacitor, 22pF.
  • 2 x Ceramic Capacitor, 470nF.
  • 1 x Ceramic Capacitor, 50V, 470pF.
  • 1 x Ceramic Capacitor, 50V, 1nF.
  • 1 x Electrolytic Capacitor, 16V, 100uF.
  • 2 x 220K Resistor.
  • 1 x 56K Resistor.
  • 1 x 3.3K Resistor.
  • 1 x 100K Resistor.
  • 2 x 0R Resistor.
  • 1 x 6.8K Resistor.
  • 1 x 470R Resistor.
  • 1 x 10K Resistor.
  • 1 x Watch Crystal for Radio.
  • 1 x 100R Resistor.
  • 1 x 3xAA Battery Cage with Flying Leads.
  • 1m x Single Core Wire.
  • 1 x 8 ohm 66mm Speaker.
  • 1 x FM Radio PCB.



Dimensions:

  • PCB Length: 88mm.
  • PCB Width: 46mm.



Requires:



Resources:

DescriptionFM Radio Kit
