Kitronik Timed Drag Racer Module

The Kitronik Timed Drag Racer Module turns electronics and design into a hands-on classroom racing challenge. Students solder the simple motor and battery connections, design and build a chassis, then test how their choices affect a car that runs for five seconds when the button is pressed. Kitronik provides teaching resources, essential information and downloadable chassis designs to help turn the project into a structured STEM or Design and Technologies activity.

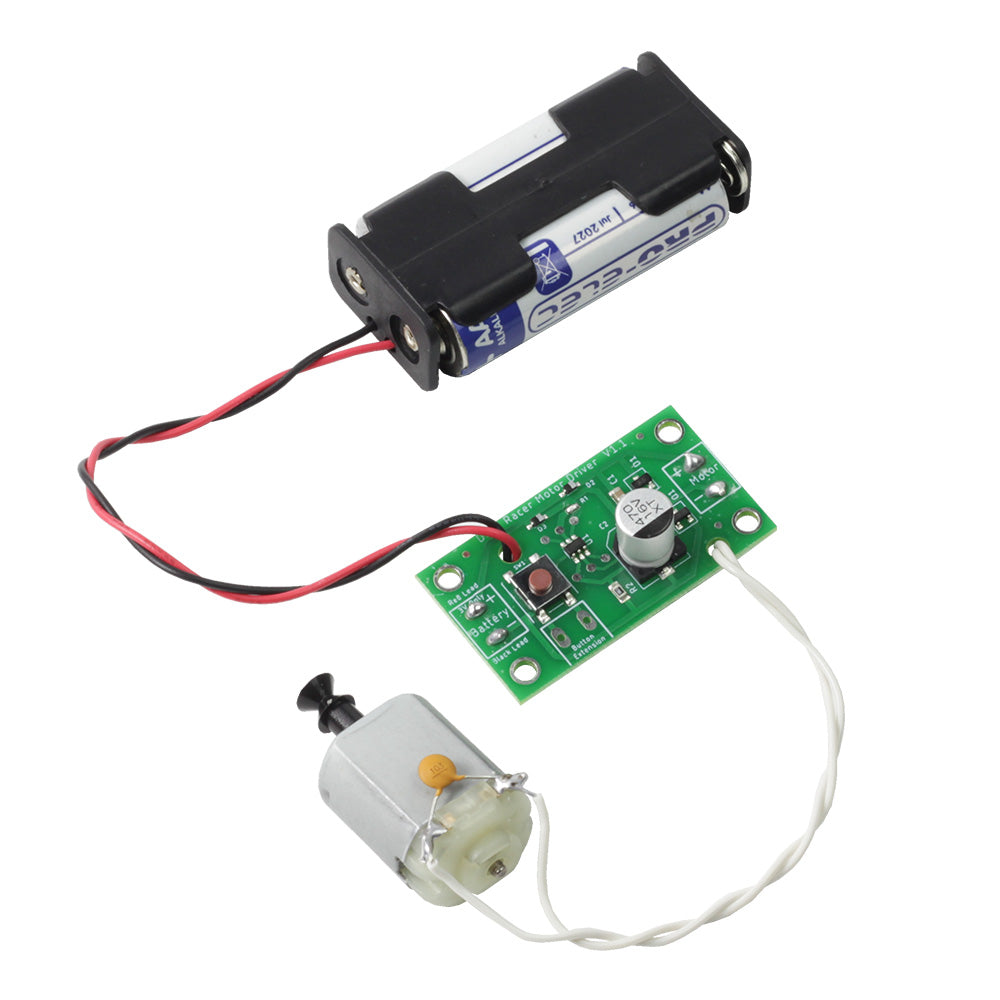

The module comprises a pre-built motor driver and timer module, a motor, and an AA battery holder, a motor pulley and a 10nF capacitor. The motor is a low-torque flat DC motor with two flat sides allowing for easy panel mounting. The 2 x AA battery holder is small and features 150mm colour-coded flying leads. The motor and battery holders need to be soldered to the board on the corresponding pads, also, the 10nF capacitor needs to be soldered across the motor. The capacitor acts as a noise suppressor, protecting the board's circuit from noise spikes produced by the motor. Additionally, the board features 4 x M3 (3.3mm) mounting holes and 2 x 2.75mm strain relief holes for the power and motor wires.

The timed drag race module features a push button, when pressed the attached motor runs for 5 seconds. Design decisions made by the children will determine which racer has the competitive edge! The board also features button expansion pads that allow for an external push button that can be mounted in a more accessible location. This kit requires some soldering. The battery holder and motor both need to be soldered to the PCB.

The board has an operating voltage of between 2.5V and 3.0V and draws 220mA when the motor is running. The typical battery life for 2 x AA is approx. 2000 button presses.

Note:

• This kit requires some soldering. The battery holder and motor both need to be soldered to the PCB, and the 10nF capacitor soldered to the motor.
• This Kit is not supplied with batteries.


Features:

• Combine electronics and design in an engaging and fun hands-on classroom exercise.

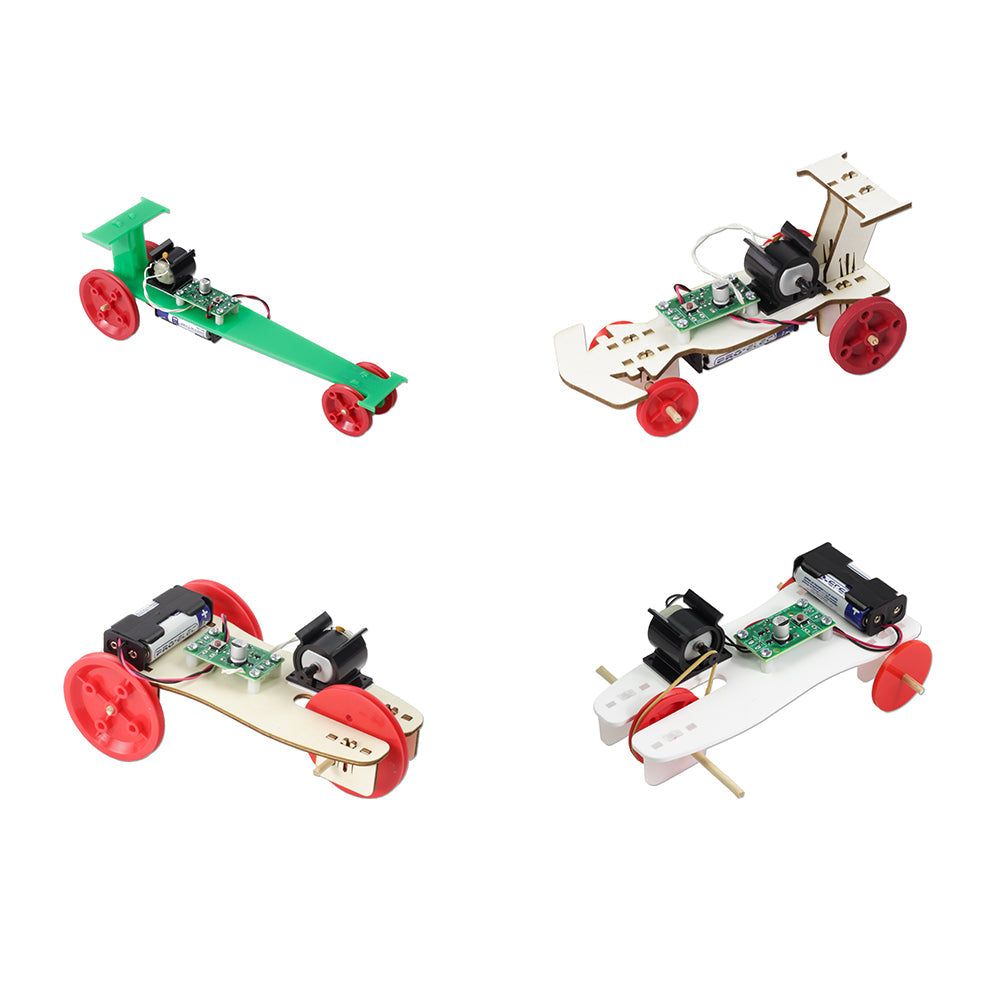

• Build the kit, design & make the chassis and wheels and test. Set up races to measure the effectiveness of the designs.
• The timed drag race module features a push button, when pressed the attached motor runs for 5 seconds.
• The board also features button expansion pads that allow for an external/remote push button.
• Operating voltage of between 2.5V and 3.0V
• Nominally draws 220mA when the motor is running
• Typical battery life for 2 x AA is approx. 2000 button presses.
• Minimal kit assembly required, solder the battery holder and motor to the board. The rest is all your chassis design.

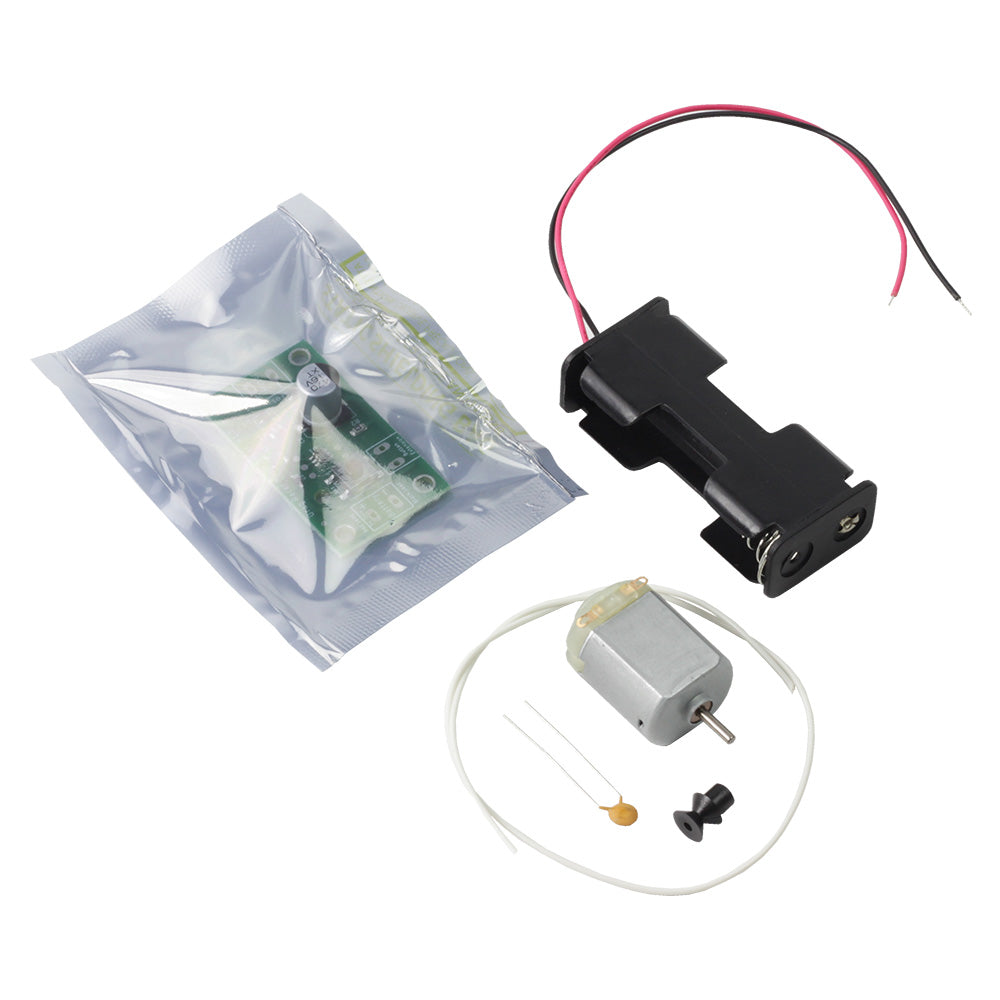

Contents:

• 1 x Kitronik Timed Drag Racer Board, pre-built.
• 1 x Low torque flat DC motor.
• 1 x AA battery holder.
• 1 x Ceramic Capacitor 10nf.
• 1 x Motor Pulley.

Requires:

• Soldering Iron.
• Solder.
• 2 x AA Batteries.
• Choose from a variety of pulley wheels (available separately or make your own) to combine with generic 4mm dowel (available from local hardware stores)
• Optionally - you may want to use these motor body holders to mount the motor on your creation
• What you use to make your drag racer body is up to you!


Resources:

• Datasheet.
• Teaching Resources.
• Essential Information.
• Kitronik chassis design ideas
