Adafruit LED Sequins - Multicolor Pack of 5
Sew a little sparkle into your wearable project with an Adafruit LED Sequin. These are the kid-sister to our popular Flora NeoPixel, they only show a single color and they don't have digital control, but that makes them smaller easier to use for many projects.
Simply connect 3 to 6VDC to the + pin and ground to the - pin, and the LED on the board will light up. You can make the LEDs fade and twinkle by using the PWM (a.k.a. analogWrite) functionality of your Gemma or Flora, or just connect directly to a digital I/O pin of a microcontroller to turn on and off. Or even skip the micro altogether, and power directly from a LiPoly or coin battery.

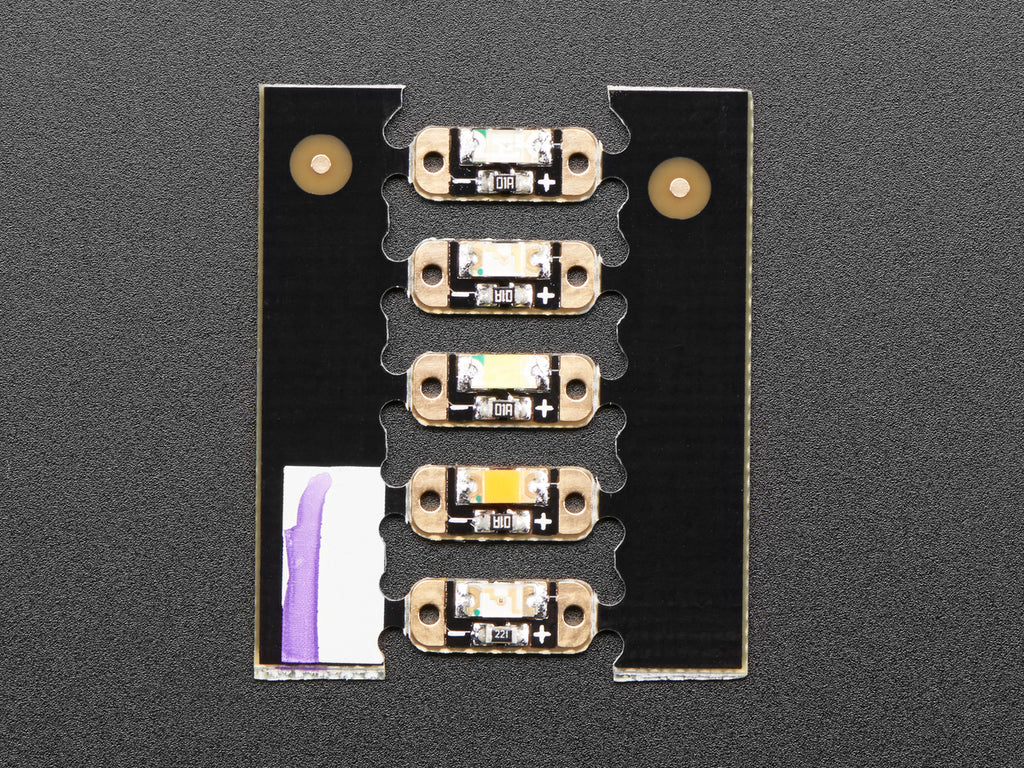

This order comes with 5 different color "1206 size" LEDs, matched with a resistor. There's one of each of the following colors: warm white, ruby red, royal blue, emerald green, and rose pink. When powered from 3.3V they draw about 5mA so you can put up to 4 or 5 in parallel on a single microcontroller pin.

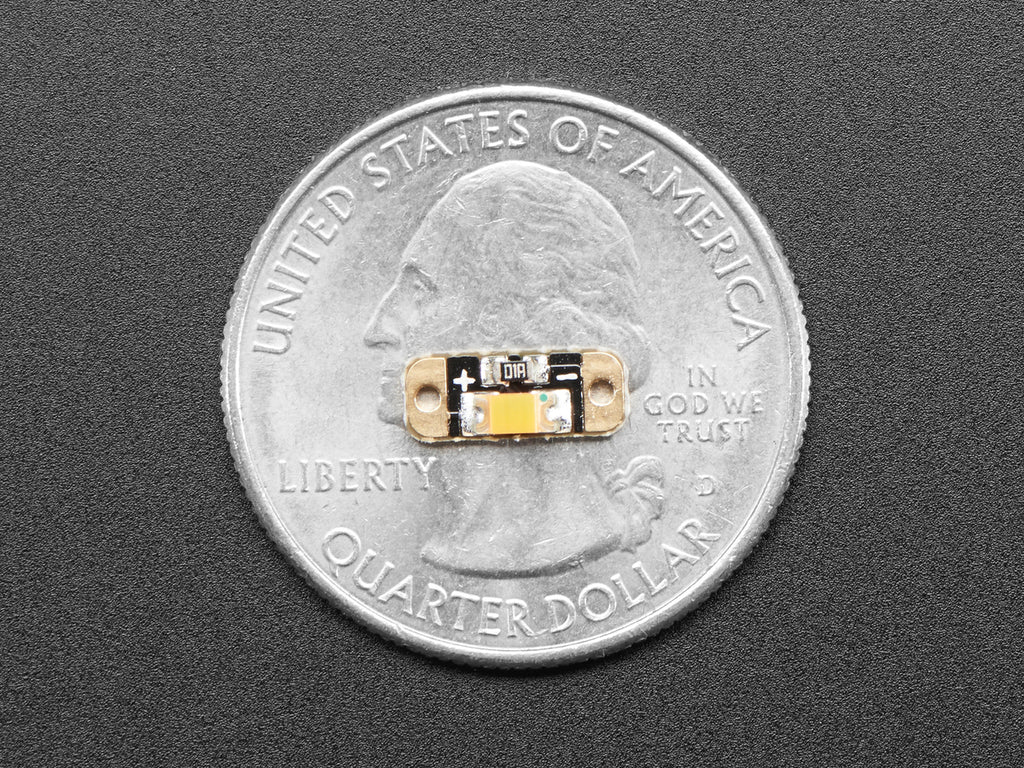

- 4mm x 9mm / .16" x .35"
- 2mm thick
- Holes are 7mm / .28" apart
- Datasheets, EagleCAD files and Fritzing objects available in the tutorial
