heART - a beating heart surface mount soldering kit

Regular price $21.75

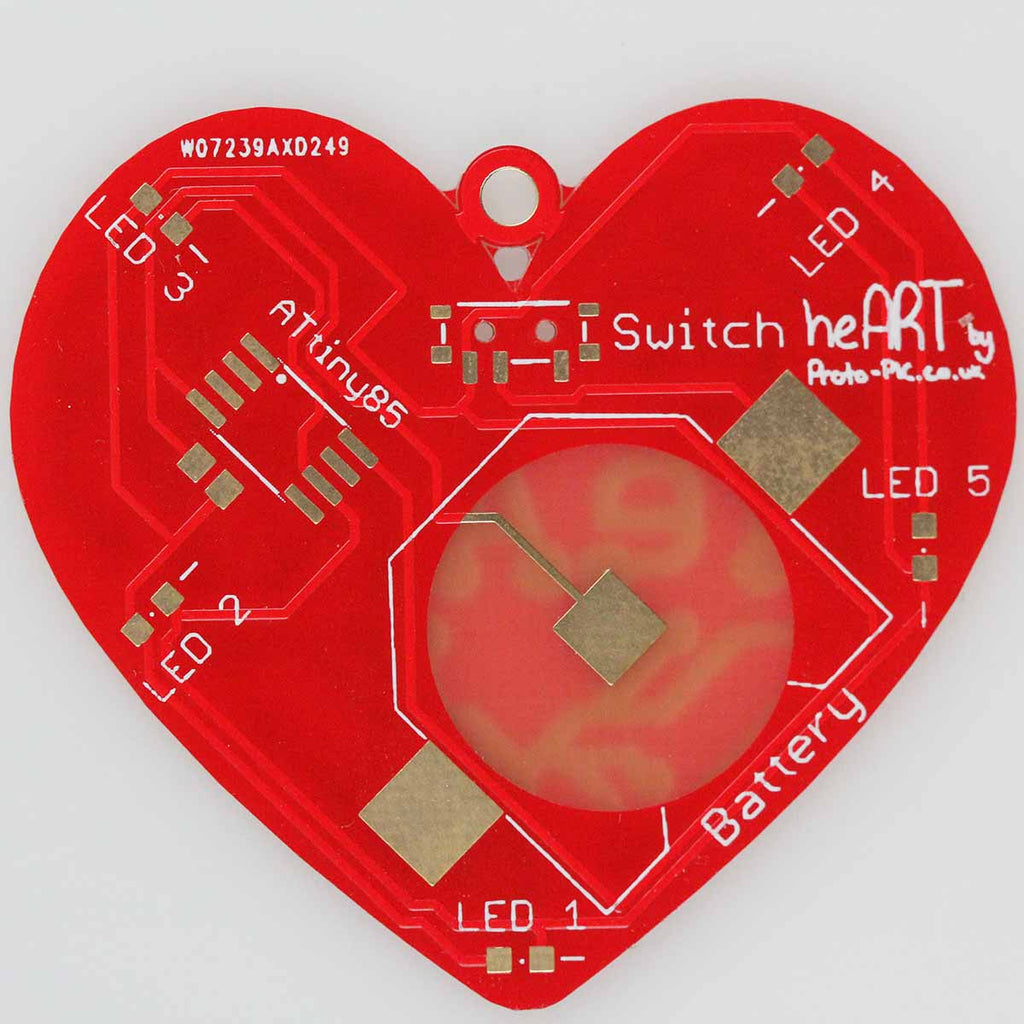

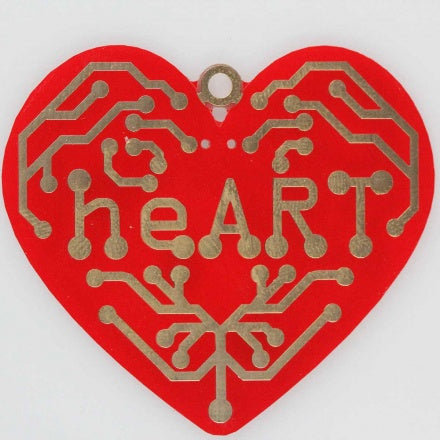

This kit is the perfect way for beginners to get started with surface mount soldering techniques. The project will require you to hand solder 5 0805 LEDs, 1 0805 capacitor, an SOIC 8 pin IC, an SMD battery clip and a surface mount switch.

Once these are all soldered in place simply adding a CR2032 battery (not included) will bring this pendent to life and start its heartbeat.

The battery should last over a week if left on continuously and much longer if switched off when not in use.



Kit contains:

  • 5 x 0805 Red LEDs + spare
  • 1 x 0805 Capacitor + spare
  • 1 x SOIC ATtiny85
  • 1 x PCB
  • 1 x SMD switch
  • 1 x CR2032 SMD battery clip

Required:

  • Soldering iron, a fine tip is best but a standard one is usable.
  • Solder, a fine gauge is advantageous but not necessary.
  • Tweezers for holding the components.
