Kitronik Stereo Amplifier

Regular price $13.20
(Suitable for ages 11 years and over)

This stereo audio amplifier kit can be used with any personal stereo equipment with a 3.5mm stereo socket, including MP3 players.

It uses a NJM2073D audio amplifier IC which can output 1W per channel. The kit is supplied with two speakers and a pre-made 3.5mm jack plug.

This kit requires a 9V battery (not supplied).

Features:

  • 1W per channel stereo amplifier.

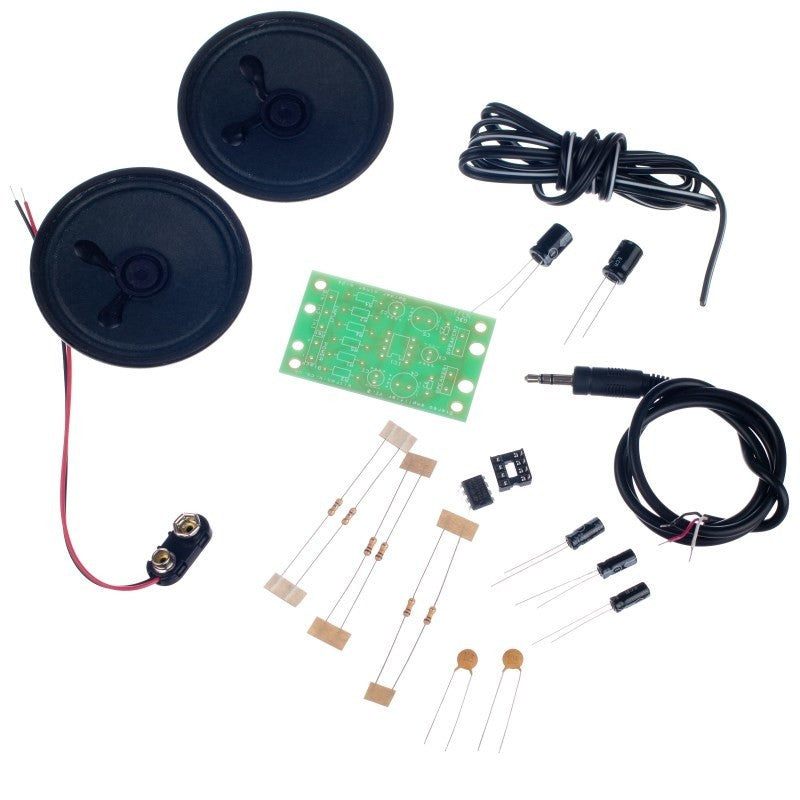

Contents:

  • 1 x NJM2073D Stereo Amplifier IC.
  • 1 x 8 Pin IC Holder.
  • 2 x 10K Resistors.
  • 2 x 4.7R Resistors.
  • 2 x 100K Resistors.
  • 2 x Ceramic Capacitor, 50V, 100nF.
  • 2 x Electrolytic Capacitors, 16V, 470uF.
  • 2 x Electrolytic Capacitors, 25V, 100uF.
  • 1 x Electrolytic Capacitor, 16V, 10uF.
  • 1 x Stereo Amp Cable.
  • 1 x PP3 Battery Clip Lead (Heavy Duty).
  • 2 x 8 Ohm 66mm Speakers.
  • 1m Figure 8 Speaker Cable 2x (7x0.18mm).
  • 1 x Stereo Amplifier PCB

Dimensions:

  • PCB Length: 58mm.
  • PCB Width: 35mm.

Requires:

  • Either: 1 x 9 volt battery.
  • Soldering Iron.
  • Solder.
  • Wire Cutters.
  • Wire Strippers.

Resources:



 This kit is designed and manufactured in the UK by Kitronik.
