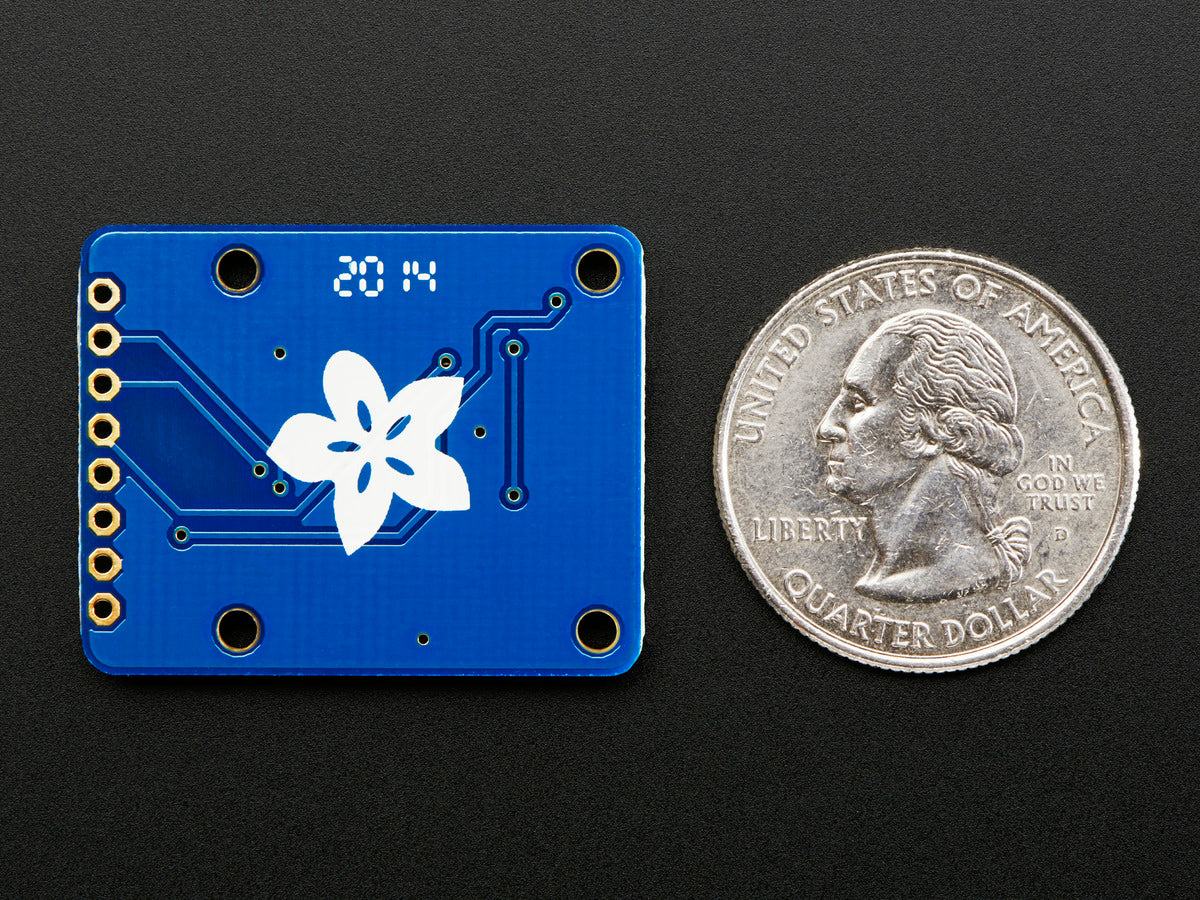

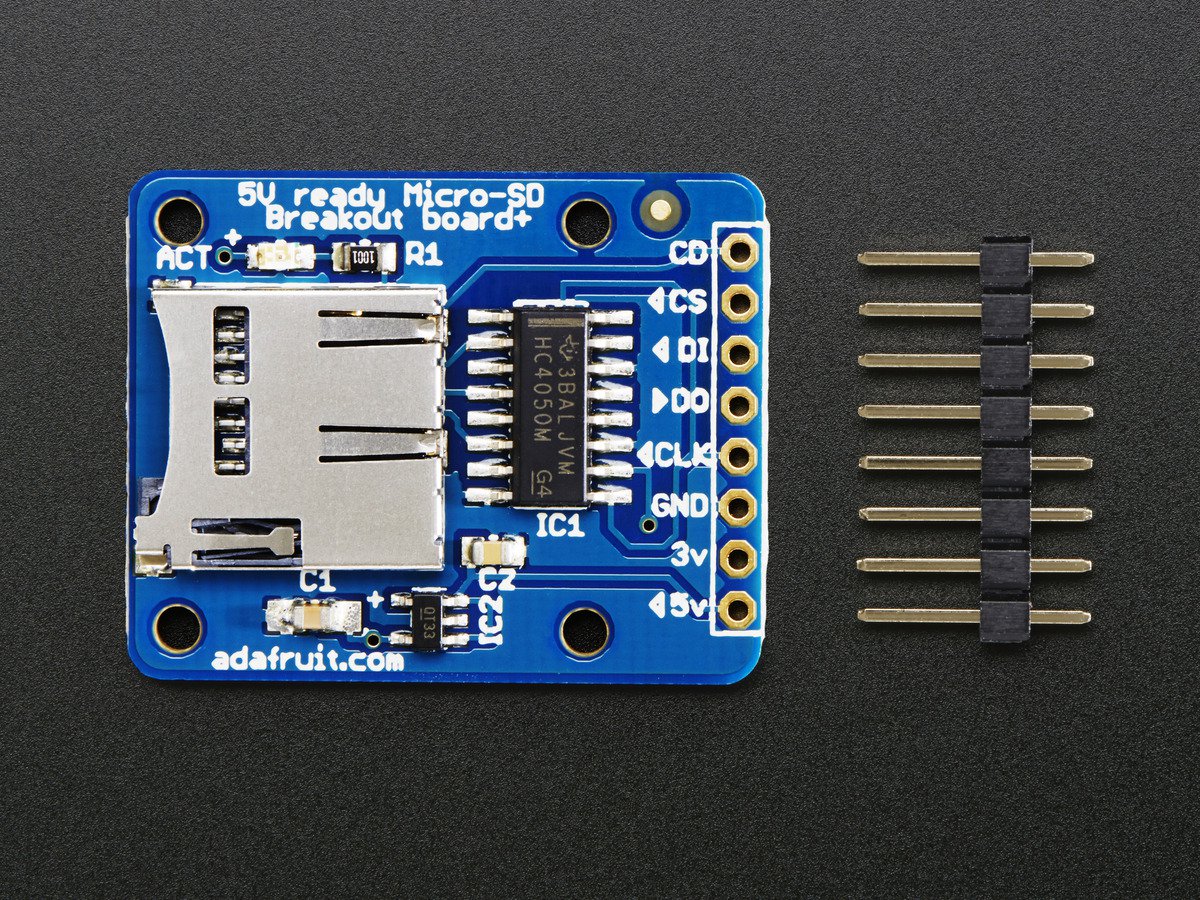

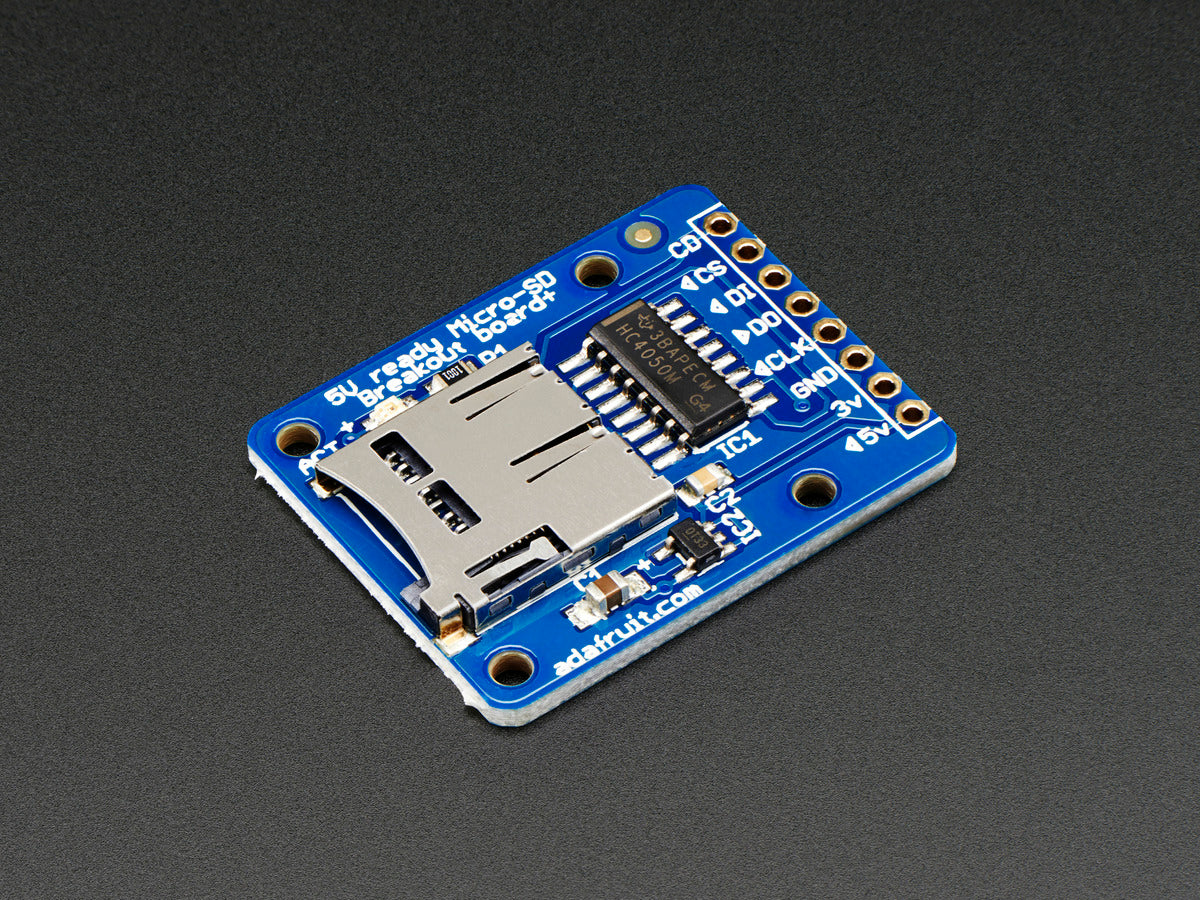

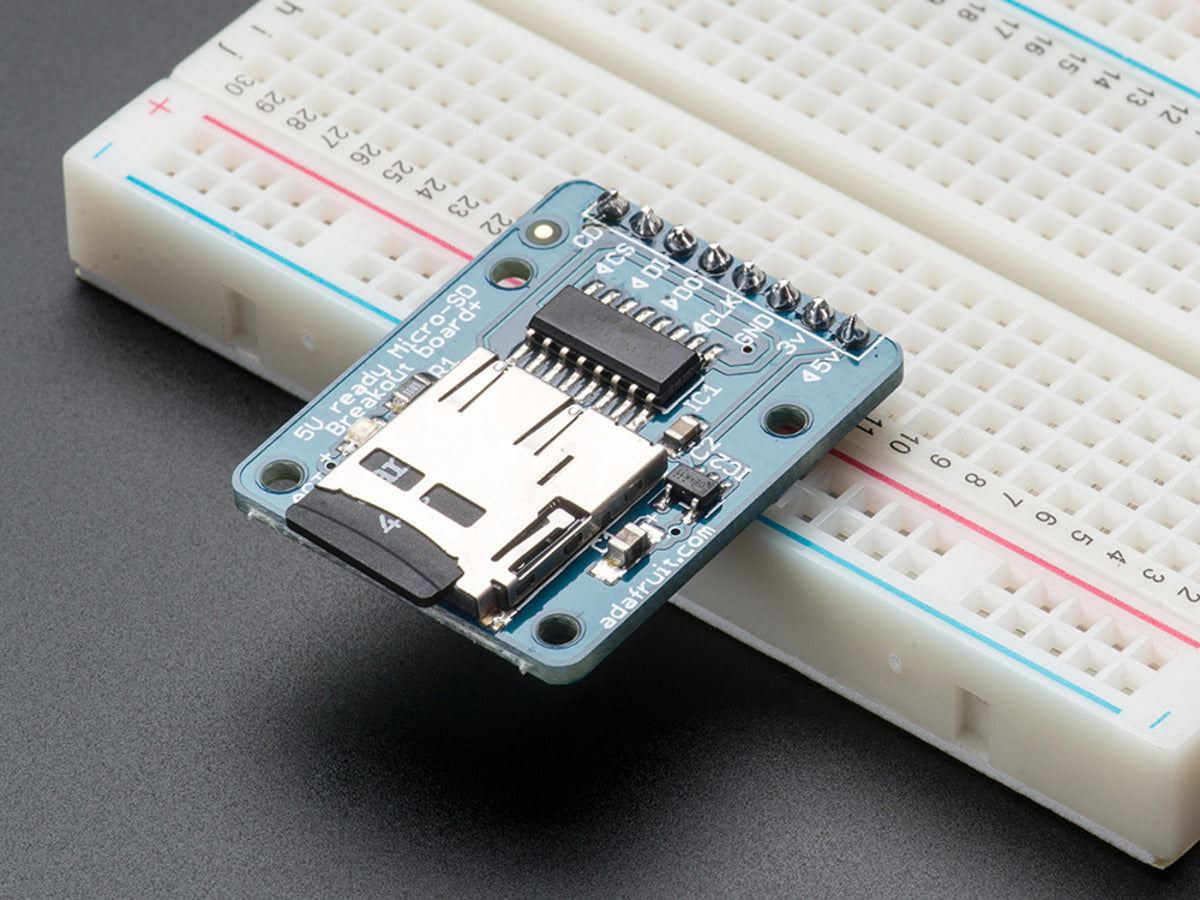

Adafruit MicroSD card breakout board+
Adafruit

Adafruit MicroSD card breakout board+

$15.20

Not just a simple breakout board, this microSD adapter goes the extra mile - It's designed for ease of use.

To use with an Arduino, connect GND to ground, 5V to 5V, CLK to pin 13, DO to pin 12, DI to pin 11, and CS to pin 10. Then you can use the Arduino IDE's SD library which supports FAT and FAT32 SD cards. For details on getting started, check out Adafruit's detailed tutorial, that discusses microSD cards, wiring and how to use this breakout board with an Arduino or CircuitPython

Datasheet, EagleCAD, and fritzing available in the product tutorial

Dimensions (without 0.1" header):

  • Length: 31.85mm/1.25in
  • Width: 25.4mm/1.00in
  • Height: 3.75mm/0.15in
  • Weight: 3.43g/0.12oz
