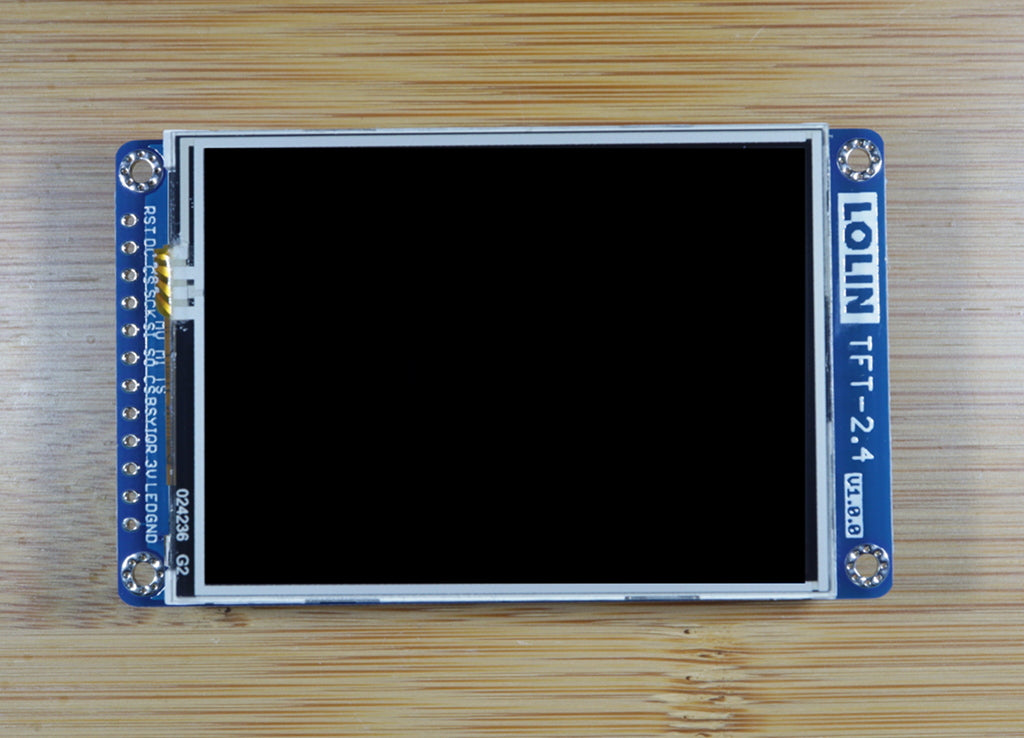

TFT 2.4 Touch Shield V1.0.0 for LOLIN (WEMOS) D1 mini 2.4" inch 320X240 SPI Touch Screen ILI9341 XPT2046
Wemos

TFT 2.4 Touch Shield V1.0.0 for LOLIN (WEMOS) D1 mini 2.4" inch 320X240 SPI Touch Screen ILI9341 XPT2046

$12.85

This 2.4"  320x240 TFT touch screen uses the XPT2046 controller, and can connect via SPI; using pins, built-in headers, or a 10p cable (available separately).

Features

  • 2.4” diagonal LCD TFT display
  • 320×240 pixels
  • TFT Driver IC: ILI9341
  • Touch Screen controller IC: XPT2046
  • Compatible with D1 mini, D1 mini Pro, D32 Pro.
  • 3 kinds of connection

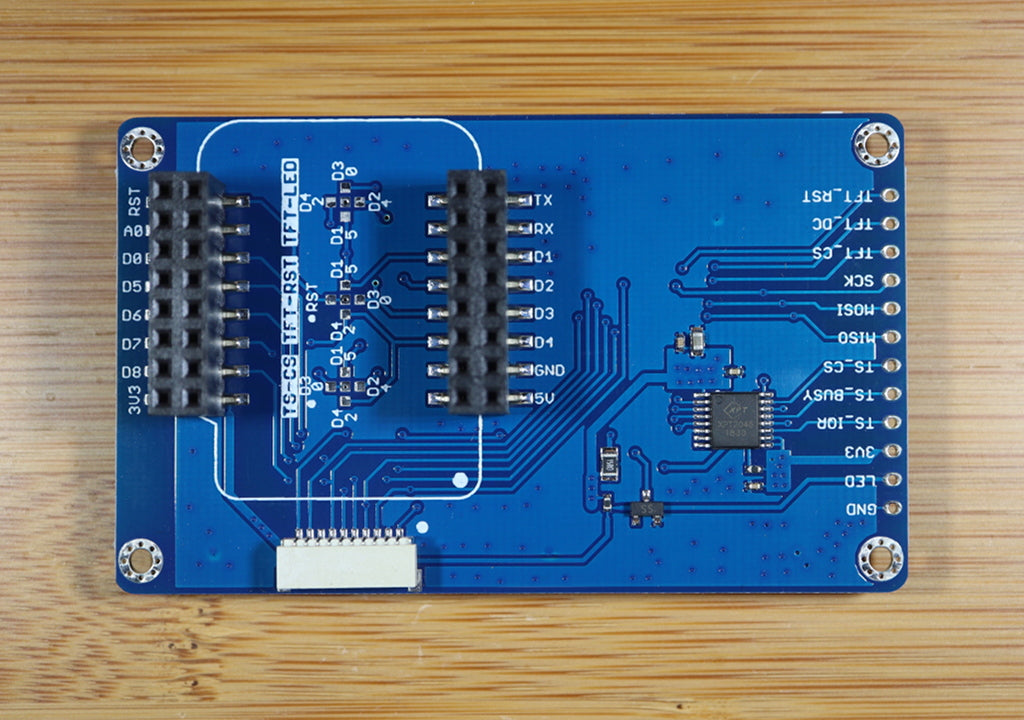

Pins

D1 mini Shield
NC*(D1/D2/D3/D4) TFT_LED
RST*(D1/D3/D4)) TFT_RST
D8 TFT_DC
D7 MOSI
D6 MISO
D5 SCK
D0 TFT_CS
D3*(D1/D2/D4) TS_CS
*default
