Waveshare 1.8inch 160x128 TFT Colour Display for the BBC micro:bit

Regular price $19.40

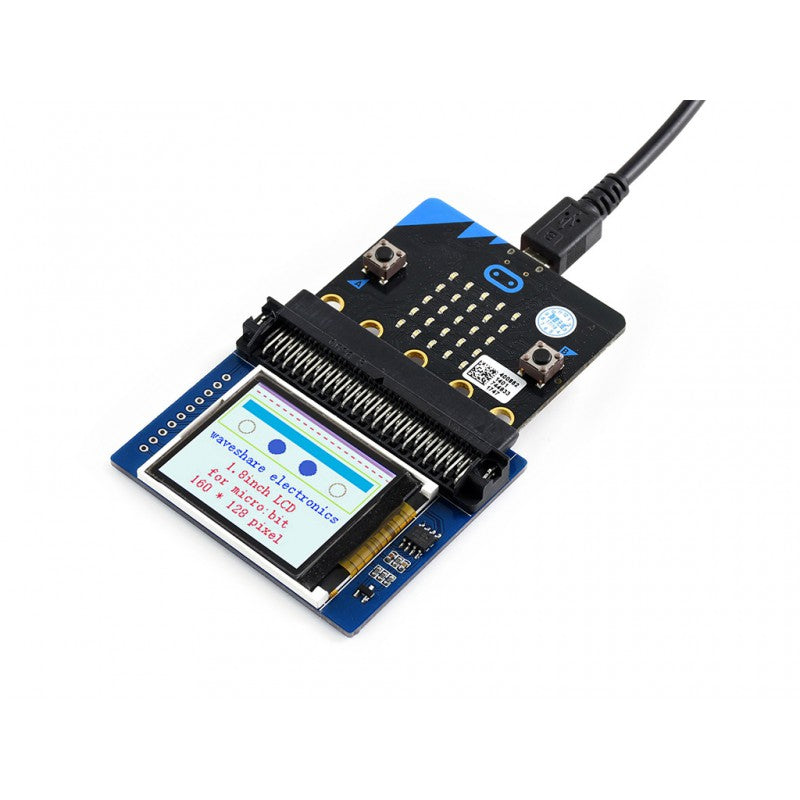

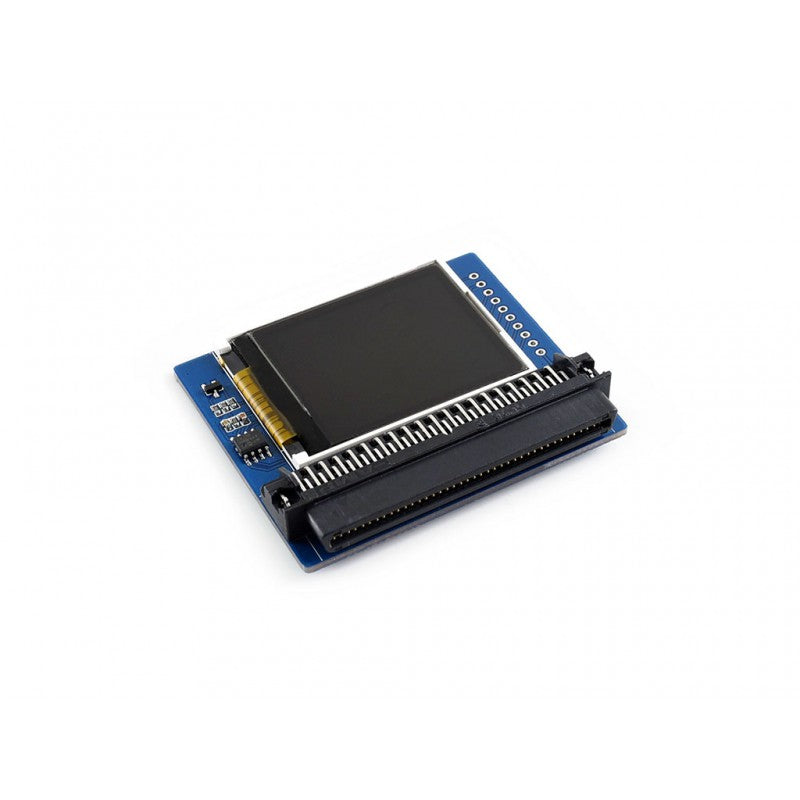

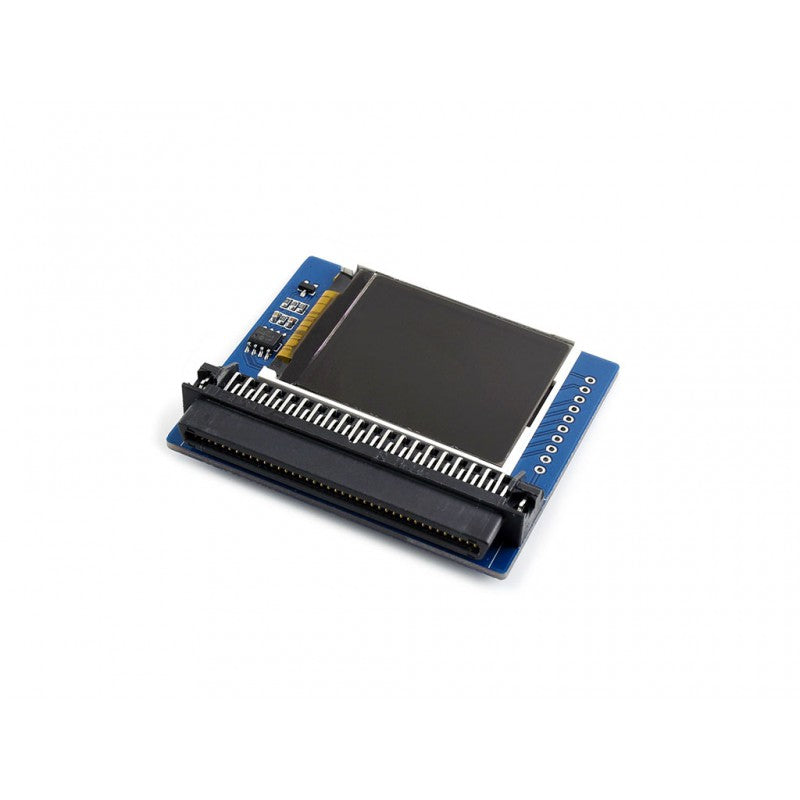

Feeling a bit limited by the 5x5 matrix? This 1.8 inch micro:bit TFT colour display plugs straight into the BBC micro:bit using an edge connector, and can be programmed in MakeCode or MicroPython!

Example code and data sheets are available here.

FEATURES

  • micro:bit edge connector, directly pluggable
  • Embedded driver ST7735S, supports 65K colors
  • Onboard SRAM 23LC1024, used as display cache, no more out of memory
  • SPI interface, takes up only a few IO pins
  • Backlight adjustment via PWM
  • Reserved solder pads for control interface, make it easy to connect with Arduino/Nucleo boards
  • Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)

SPECIFICATIONS

  • Driver: ST7735S
  • Resolution: 160x128
  • Display color: RGB, 65K colors
  • Operating voltage: 3.3V

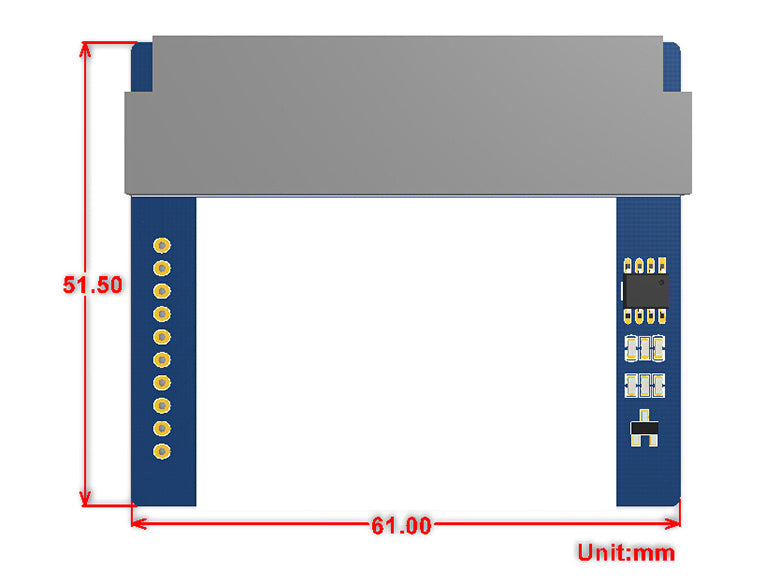

  • Dimensions: 61mm x 51.5mm

PINOUTS

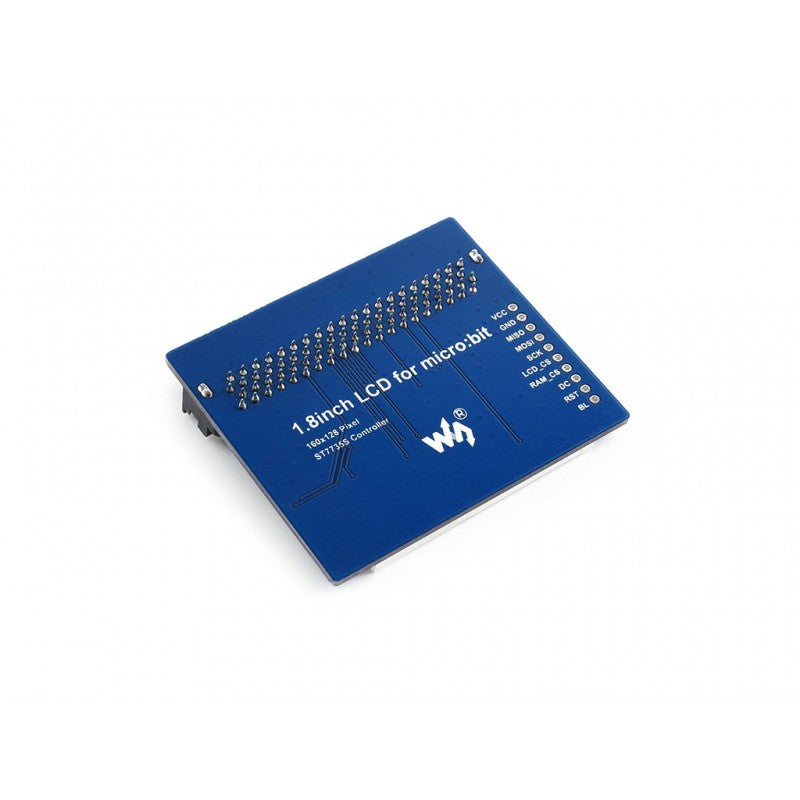

PIN micro:bit PIN DESCRIPTION
VCC 3V3 Power
GND GND Ground
MISO P14 SPI data master input/slave output
MOSI P15 SPI data master output/slave input
SCK P13 SPI clock input
LCD_CS P16 LCD chip selection
RAM_CS P2 SRAM chip selection
DC P12 LCD data/command
RST P8 LCD reset
BL P1 LCD backlight
