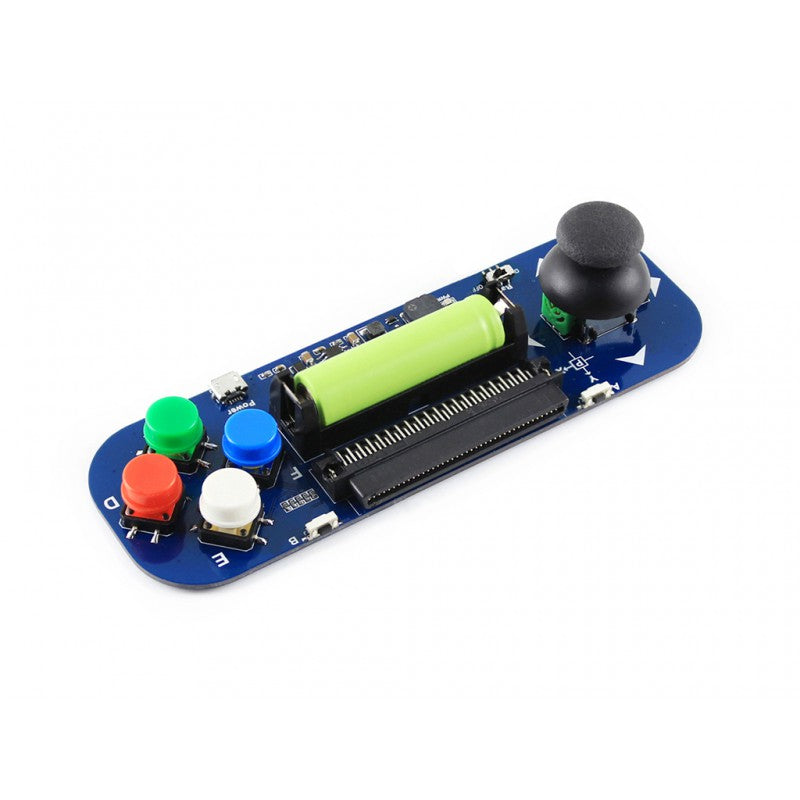

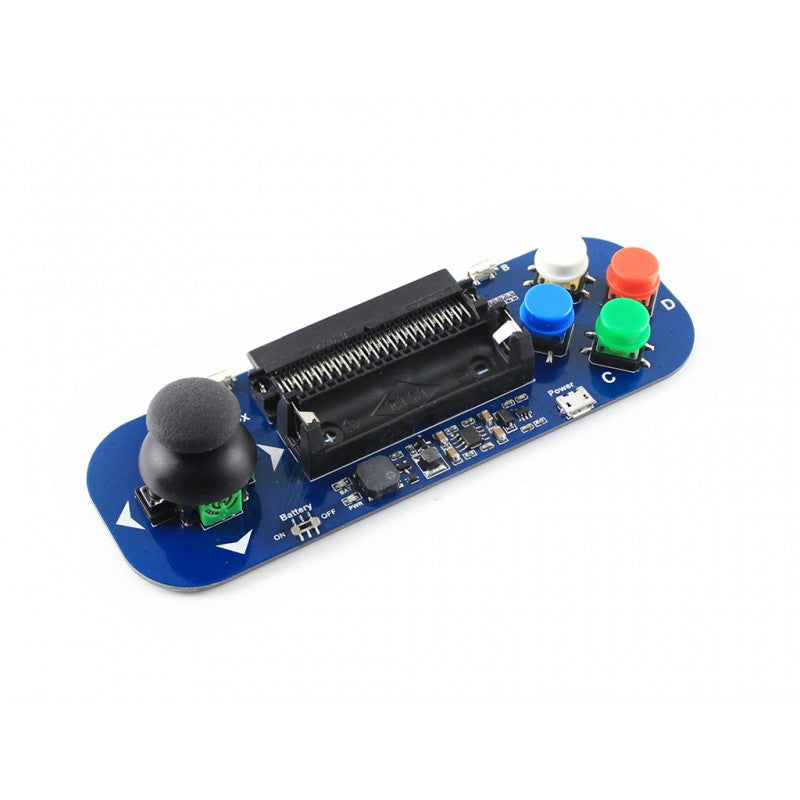

Waveshare Gamepad for the BBC micro:bit, Analog Joystick, and Buttons

Regular price $18.55

Add a joystick control to your micro:bit with this gamepad. There's an onboard buzzer to play music and game background effects. It's also powered from a rechargeable 14500 Li-ion battery (not included), that can be charged through the USB port!

Documentation and example code is available here.

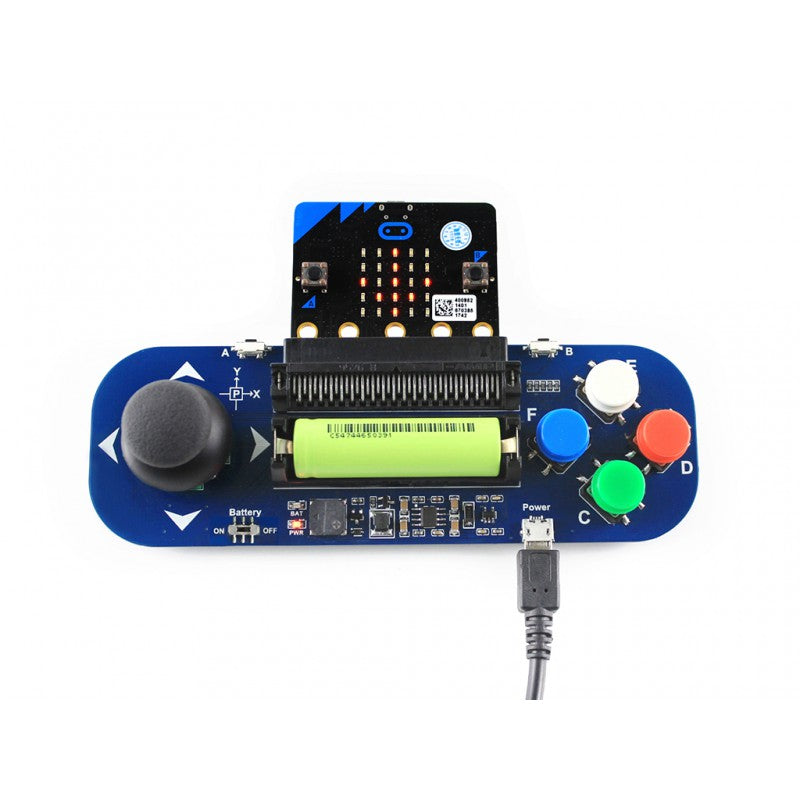

Note: this item requires a BBC micro:bit and 14500 Li-ion battery (both available separately).

FEATURES

  • micro:bit edge connector, just plug straight in!
  • High quality joystick, dual channel analog outputs for precise positioning, one channel digital output for press control
  • Onboard battery and charge circuitry, powered from battery, also charges the battery through USB connection
  • Battery indicator, blinks 1/2/3/4 times indicates the power remains about 25%/50%/75%/100% respectively
  • 4x colorful buttons
  • 2x side buttons, mapped to the A/B buttons of micro:bit, easy to use
  • Buzzer for playing music and game background effects
  • Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)

SPECIFICATIONS

  • Operating voltage: 5V
  • Battery type required: 14500 Li-ion

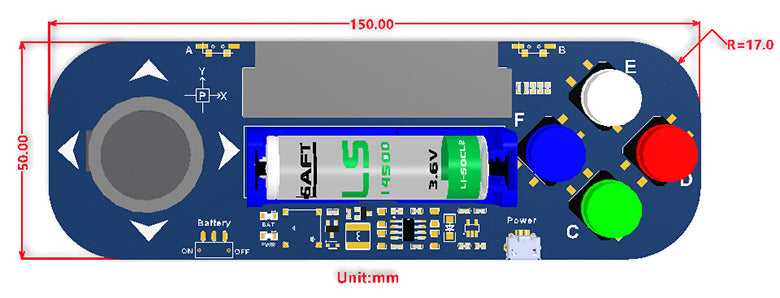

  • Dimensions: 150mm x 50mm

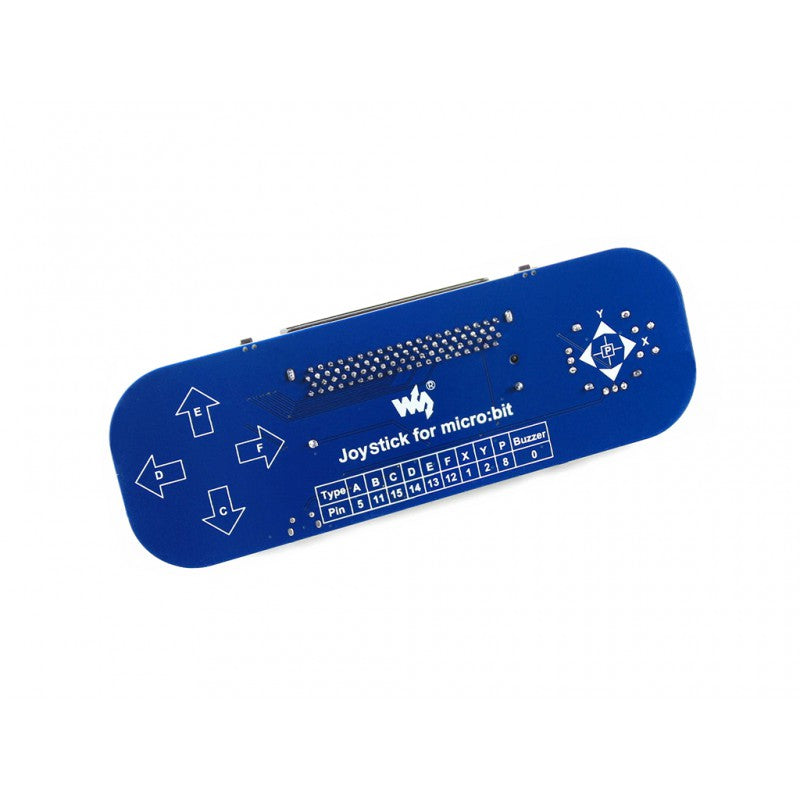

PINOUTS

SYMBOL PIN DESCRIPTION
A 5 Button A
B 11 Button B
C 15 Button C
D 14 Button D
E 13 Button E
F 12 Button F
X 1 Joystick X axis
Y 2 Joystick Y axis
P 8 Joystick press
Buzzer 0 Buzzer
