Kitronik High Power Amp Kit (PCB & Components)

Regular price $28.65

In stock and more available to backorder

(Suitable for ages 14 years and over)

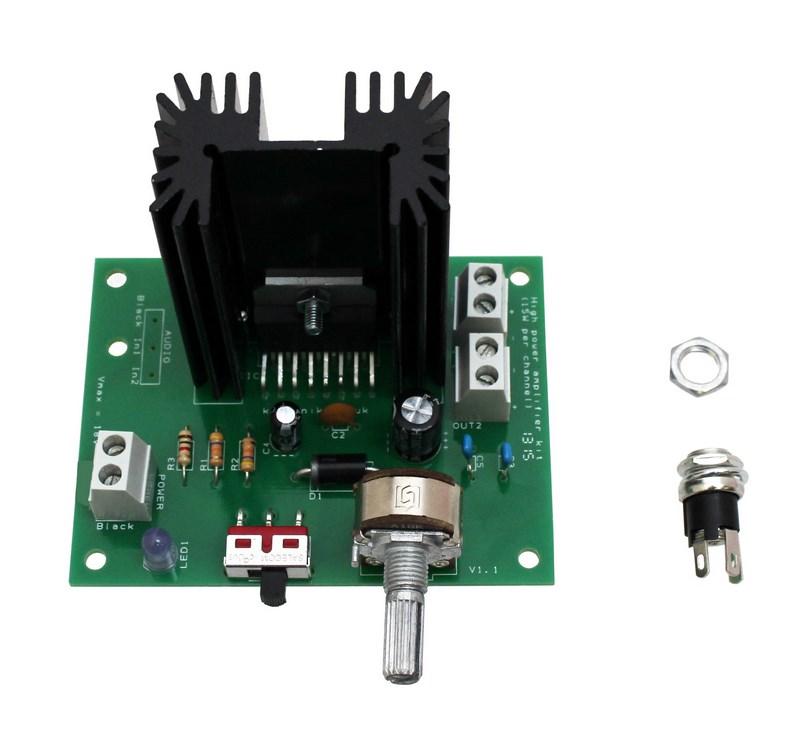

This amplifier kit can output up to 15W per channel into a pair of high quality speakers. The kit is capable of producing a very loud, high quality stereo sound. The product includes all the components required to build the PCB, but not a power supply, speakers or cable to connect it to audio equipment.

It features a power LED, on / off switch and volume control.

This kit includes:

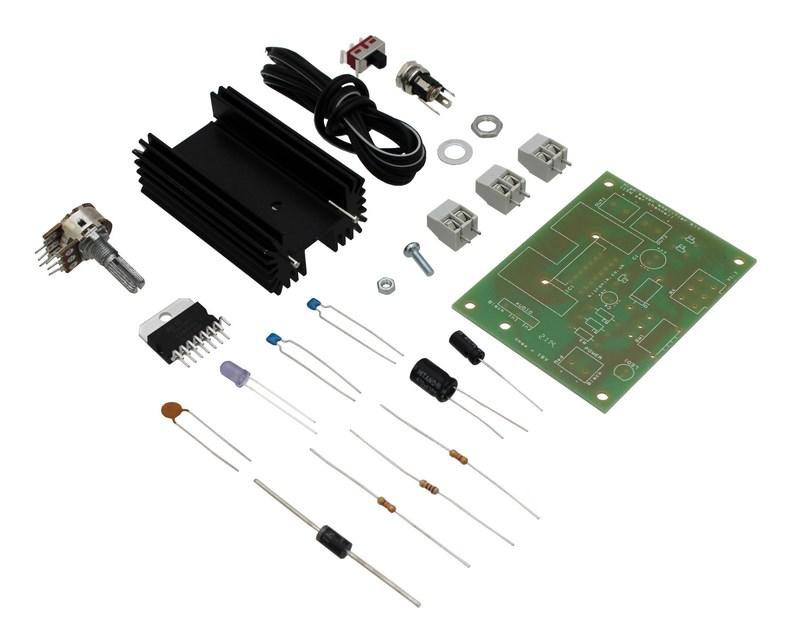

  • 1 x Printed circuit board
  • 1 x TDA7297 audio amplifier IC
  • 1 x Heat sink
  • 1 x M3 nut and bolt
  • 1 x 10Kohm dual potentiometer
  • 2 x 47Kohm resistors
  • 1 x 1Kohm resistor
  • 1 x 1N5400 diode
  • 1 x Blue LED
  • 1 x 470uF capacitor, electrolytic
  • 1 x 10uF capacitor, electrolytic
  • 1 x 100nF capacitor, ceramic disc
  • 2 x 220nF capacitor, ceramic disc
  • 1 x Right angle PCB mounting power switch (high current)
  • 3 x Two way terminal blocks
  • 1 x Panel mounting DC power socket

PCB dimensions: 77.5mm x 59mm. Four mounting points are available, one in each corner.

This kit requires soldering.

Click here to download the essential information pdf_icon.gif

Click here to download the full teaching resources pdf_icon.gif

Note: The heat sink will become hot when the amplifier is used at a high volume for long periods of time. For the heat sink to work at its best it should be mounted in a well ventilated case.
