Camera Module for Raspberry Pi Zero

This minimal camera for the Pi Zero (or Pi Zero W) is perfect for small camera projects where space is at a premium.

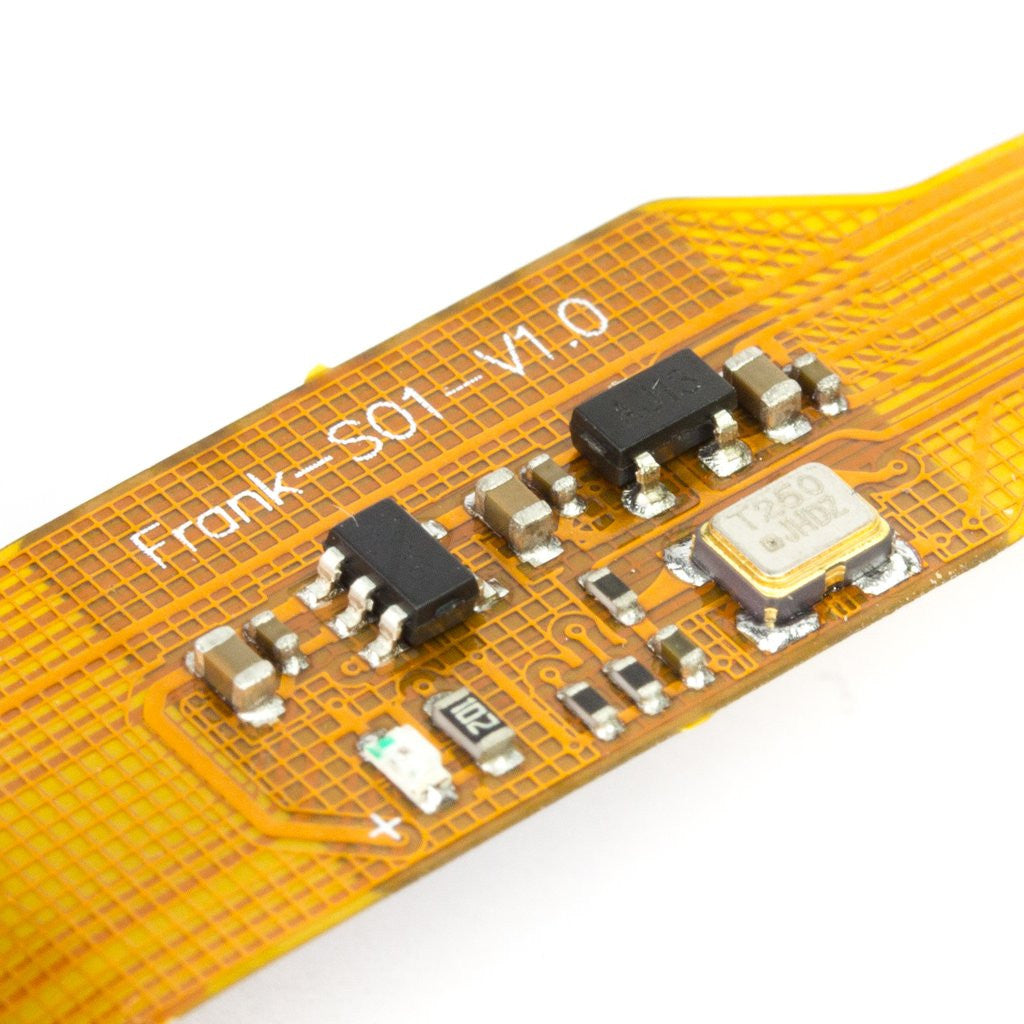

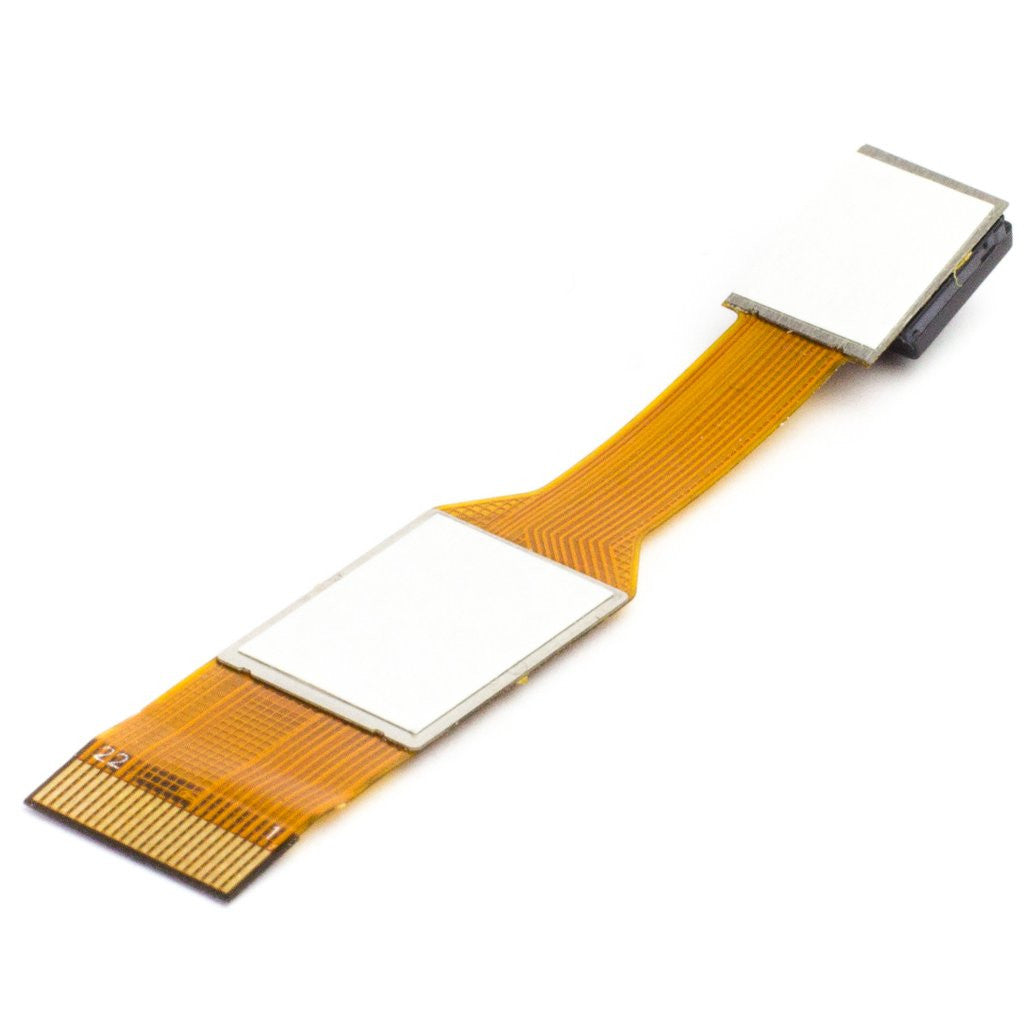

The sensor is 5MP, and the whole shebang is mounted on a flexible circuit board. As such, a little care is needed when handling, just like the connector on the Pi Zero. Easy there, Lennie!

Otherwise it's an economical and svelte solution for bird box cameras, body-cams, home security, and simple computer vision projects.

UPDATE: now also available without an IR filter, which is useful for night vision, especially when using IR lights to illuminate the subject.

UPDATE: now available with a 120° wide-angle lens!

Features

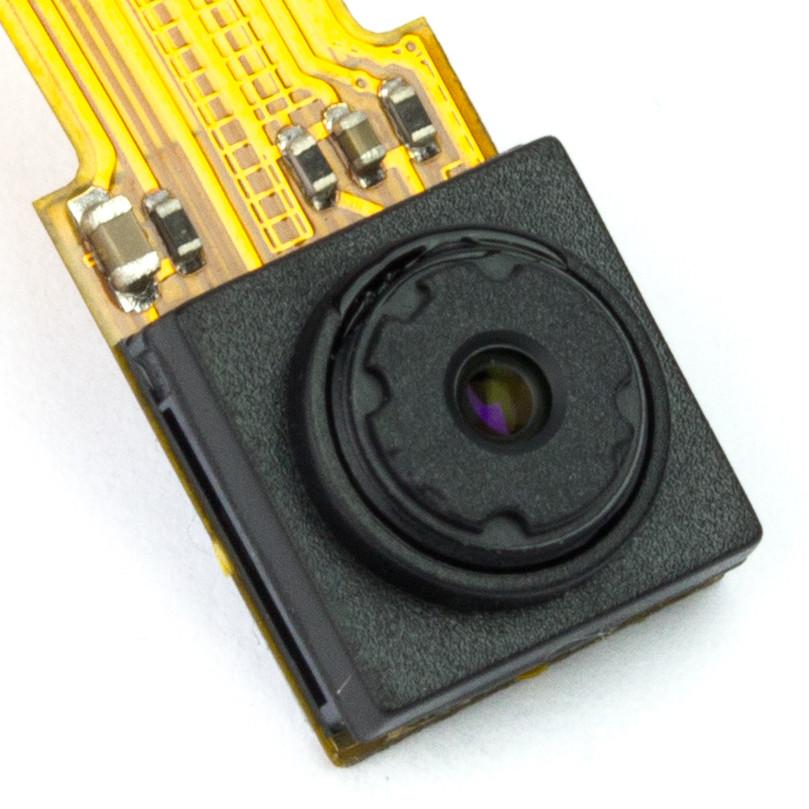

• 5MP sensor, 2592x1944 pixels (same as version 1 official Pi camera)
• 1080p video at 30 FPS (or 60 FPS at 720p, 90 FPS at 480p)
• f2.9 lens, 3.60 mm focal length
• 53.50 degrees horizontal, 41.41 degrees vertical field of view
• Approx. dimensions of circuit and camera: 60 x 11.4 x 5.1mm

Notes

• Only for Raspberry Pi Zero or Zero W with CSI camera port
• Raspberry Pi Zero not included

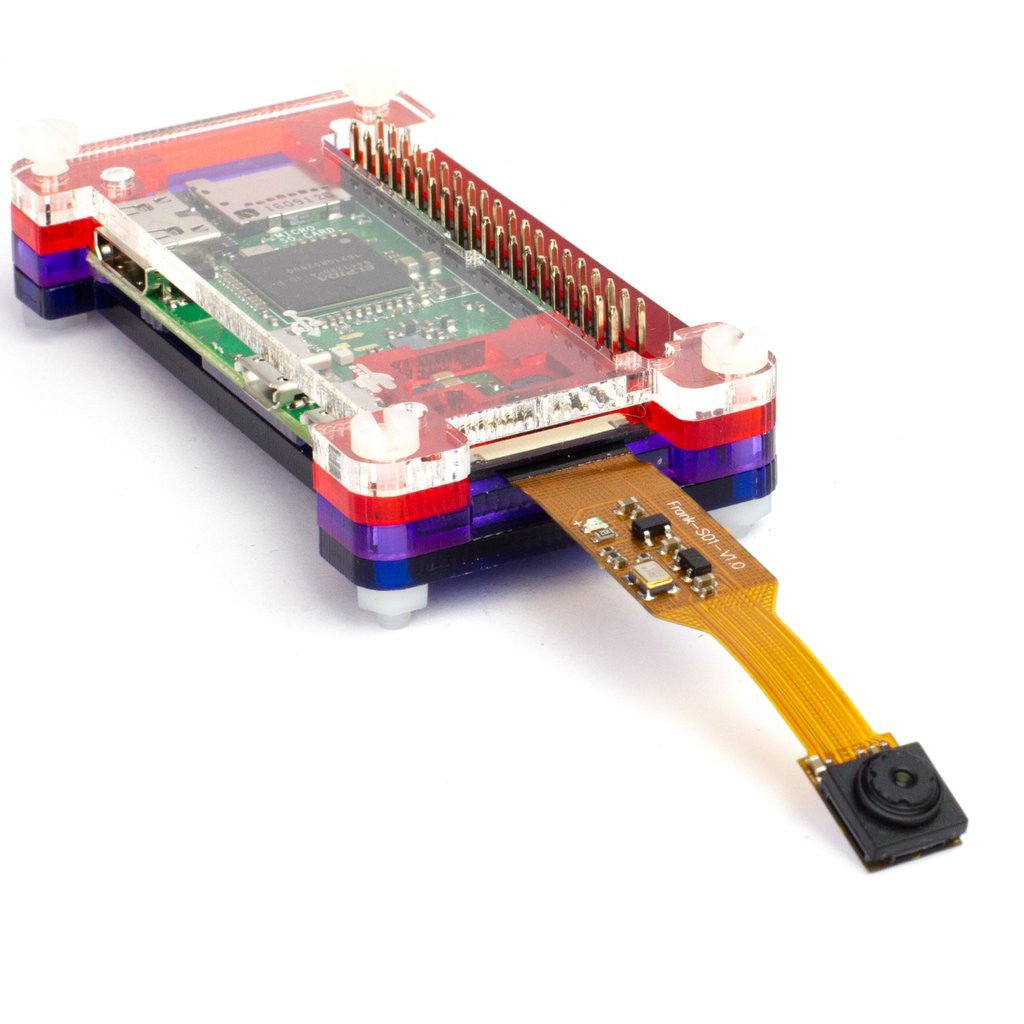

• Compatible with the Adafruit Pi Zero case and the Pimoroni Pibow Zero W case, and Pibow Zero 1.3 cases.
