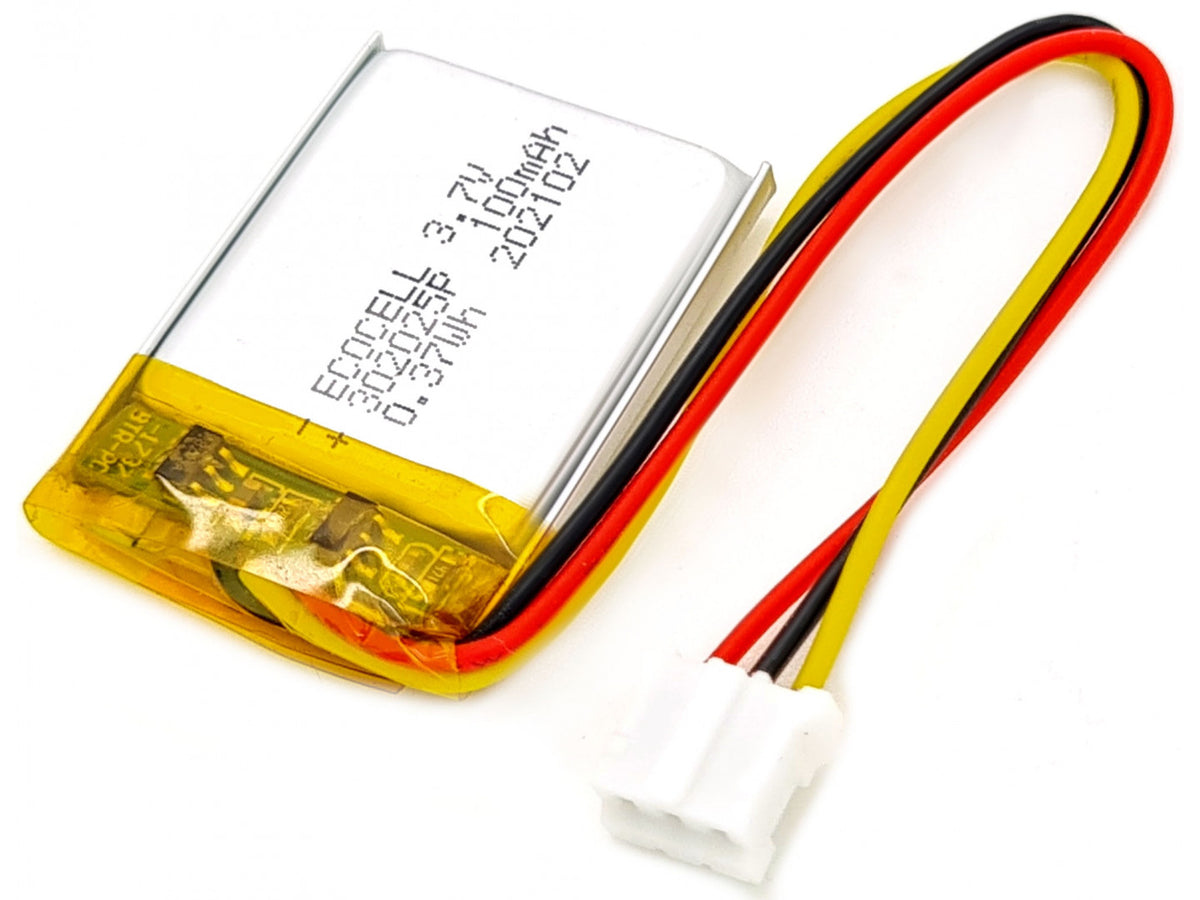

Lithium Ion Polymer Battery - 3.7v 100mAh

Regular price $9.85

Lithium ion polymer (also known as 'lipo' or 'lipoly') batteries are thin, light and powerful. The output ranges from 4.2V when completely charged to 3.7V. This battery has a capacity of ~100mAh for a total of about 0.4 Wh.

Note: due to postage restrictions, lithium polymer batteries can only be sent by road, unfortunately this means there is no express shipping option for these.

This is a normal discharge battery, and NOT a high rate discharge battery. It is NOT suitable for RC cars, planes, drones or other devices that require high power(current) for a short time. They are for applications that run for a long time(days to months) on a single charge, like portable electronic devices, dash cams, cameras or similar devices. The main difference between a high rate LiPo and normal LiPo is the discharge and charge performance. This battery has a continuous discharge rate of 1C, where a high rate battery has a continuous discharge rate of 5C, 10C, 15C, 20C, 25C, 30C 40C, 50C or higher.

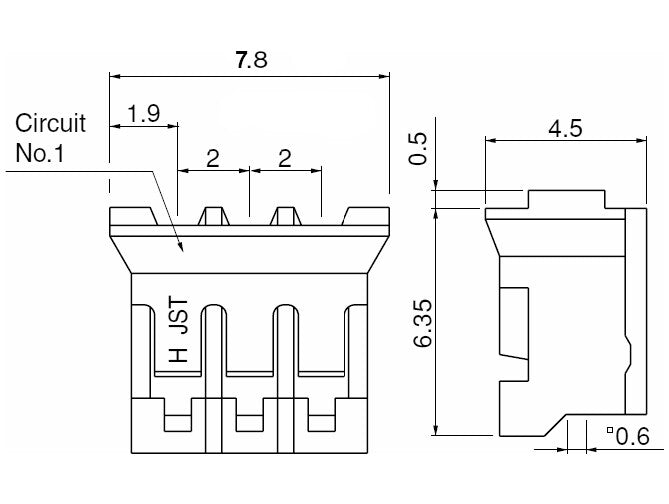

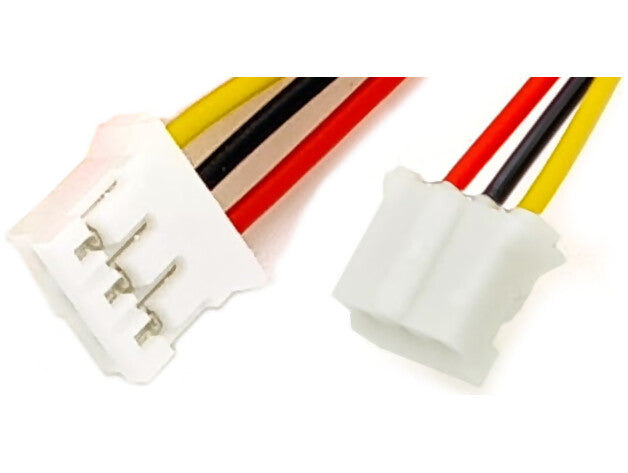

The batteries come pre-attached with a genuine 3-pin JST-PH connector as shown and includes the necessary protection circuitry. The JST-PH connector has 2.0mm spacing between it’s pins. Because they have a genuine JST connector, not a low quality knock-off, the cable wont snag or get stuck in a matching JST jack, they click in and out smoothly.

This is a 3 pin(3 wire) version of this LiPo battery. The yellow wire is connected to an onboard 10kΩ NTC Temperature Sensor. We also sell the 2 pin version of this battery, without the NTC temperature sensor.

The included protection circuitry keeps the battery voltage from going too high (over-charging) or low (over-use) which means that the battery will cut-out when completely dead at 3.0V. It will also protect against output shorts. However, even with this protection it is very important that you only use a LiIon/LiPoly constant-voltage/constant-current charger to recharge them and at a rate of 0.5C or less. Like most lipos, the batteries we sell do not have thermistors built in. This is why we suggest charging at 0.5C or even less, which is 50mA max for this battery.

When using this battery for wearable applications, and with conductive thread, a short in the thread can create sparks and heat. We recommend using coin cell batteries for beginners.

Additional safety notes: Do not use a NiMH/NiCad/lead-acid charger! Also, do not abuse these batteries, do not short, bend, crush or puncture. Never charge or use unattended. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or possibility of short circuits. Polarity matches all Adafruit LiPoly/LiIon chargers and boards, other brands may have reverse polarity and can destroy your battery. As with all Lithium ion polymer batteries and with any power source - they should be used by experts who are comfortable working with power supplies.

Technical Details:

Type: Rechargeable Polymer Lithium Ion battery
Size: 25 x 20mm
Width: 3mm
Weight: 3g
Typical Capacity: 100mAh
Nominal Voltage: 3.6V/3.7V
Full Charge Voltage: 4.20V
Standard Charge Current: 0.2C = 20mA
Maximum Charge Current: 0.5C = 50mA
Recommended Maximum Discharge Current: 0.5C = 50mA
Maximum Discharge Current: 1C  = 100mA
Temperature Sensor: Onboard 10kΩ NTC Temperature Sensor
Temperature Range: -20°C to +60°C
Protected/Unprotected: Protected
